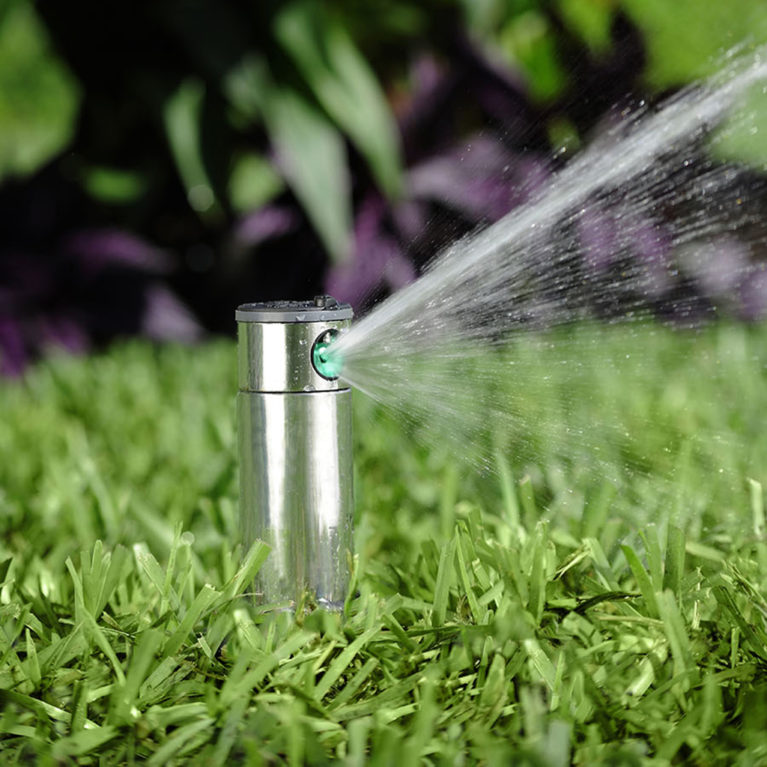

RPS75i-SS Gear Drive Sprinkler

The RPS 75i rotor is designed for residential and light commercial applications. This new addition to K-Rain’s line of rotors retains all of the features and benefits of the RPS75™ and delivers even more! To reduce the radius and distance in other rotors on the market, the nozzle must be changed or the break-up screw must be engaged. These steps limit the maximum reduction to 25% and cause uneven watering. With the RPS 75i, a simple turn of the patented Flow Shut-Off controls distance and water flow proportionately—up to 50%. The RPS 75i delivers even water distribution, eliminates dry spots and provides better zone performance while saving water. All of this in just one rotor—the right rotor for every landscape!

  • 3/4” Female Threaded 20mm BSP Inlet – Replaces all standard rotors
  • Direct replacement for Hunter® PGP®
  • Riser fits in existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS75 riser
  • Top Adjustment – No training necessary, the RPS75 has the same adjustment procedure as the Hunter® PGP®
  • Full and Part circle rotation – Provides a full range of adjustment from 40* to 360*
  • Universal adjustment tool – Compatible with existing Hunter® products
  • Rubber Cover – Seals out dirt and increases product durability
  • Wide Selection of Nozzles – Provides flexibility in system design
  • Inlet – 3/4” Female Threaded 20mm BSP
  • Reduce Distance by Reducing Flow Rate
  • Save Time on Every Project – New or Retrofit
  • Rugged RPS Family Construction
  • Conserves Water
  • Superior Uniformity
  • Fewer Zones Required
  • Improved Hydraulics

Riser Material: Stainless Steel
  • RPS75i – Gear Drive Sprinkler
SKURPS75i-SS Category
Close
Specifications

Specifications

  • Arc Adjustment Range: 40° to 360°
  • Flow Range: .35 – 8.6 GPM
  • Pressure Rating: 30 – 70 PSI
  • Precipitation Rate: .124 – 2.0 in./hr.
  • Overall Height (Popped Down): 7 3/8″
  • Recommended Spacing: 25′ to 45′
  • Radius: 11′ to 51′
  • Nozzle Trajectory: 25°
  • Low Angle Nozzle Trajectory: 11°
  • Nozzles included in box
Close
Instructions

Instructions

Download Manual

Close

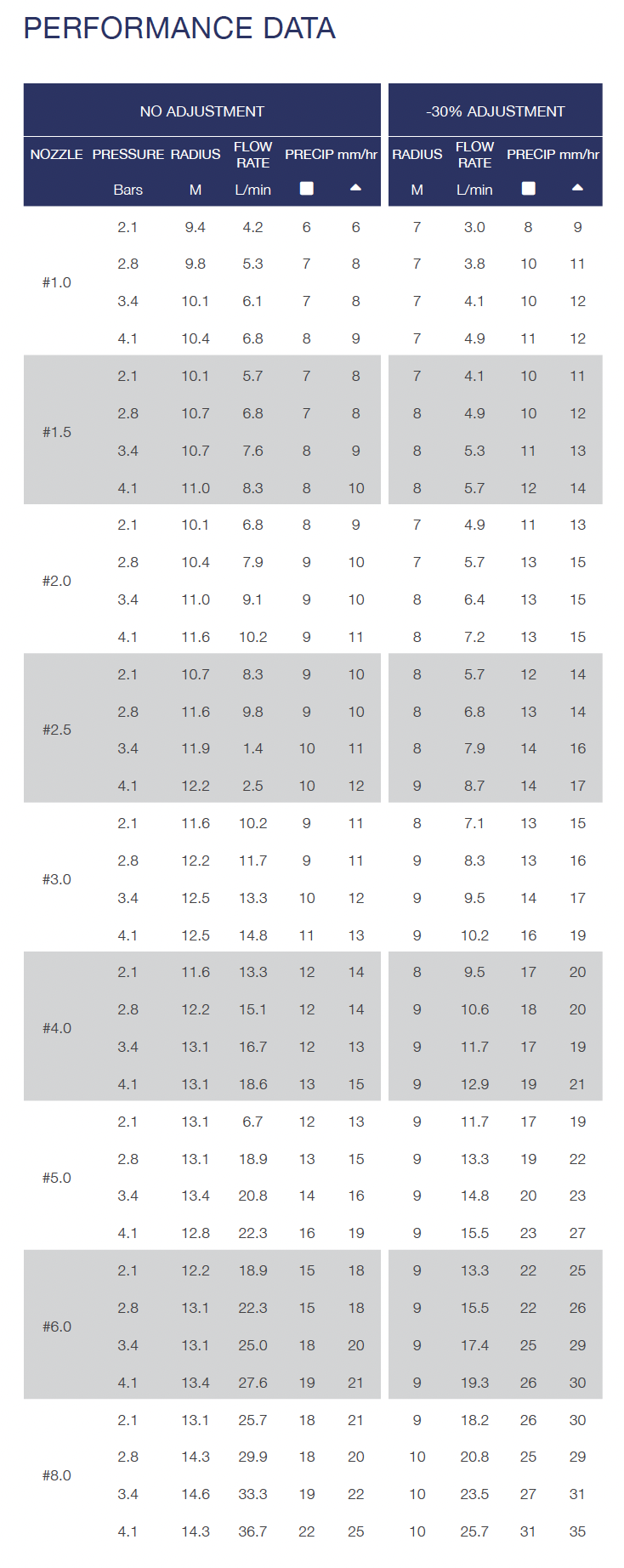

Performance Data

Performance Data
