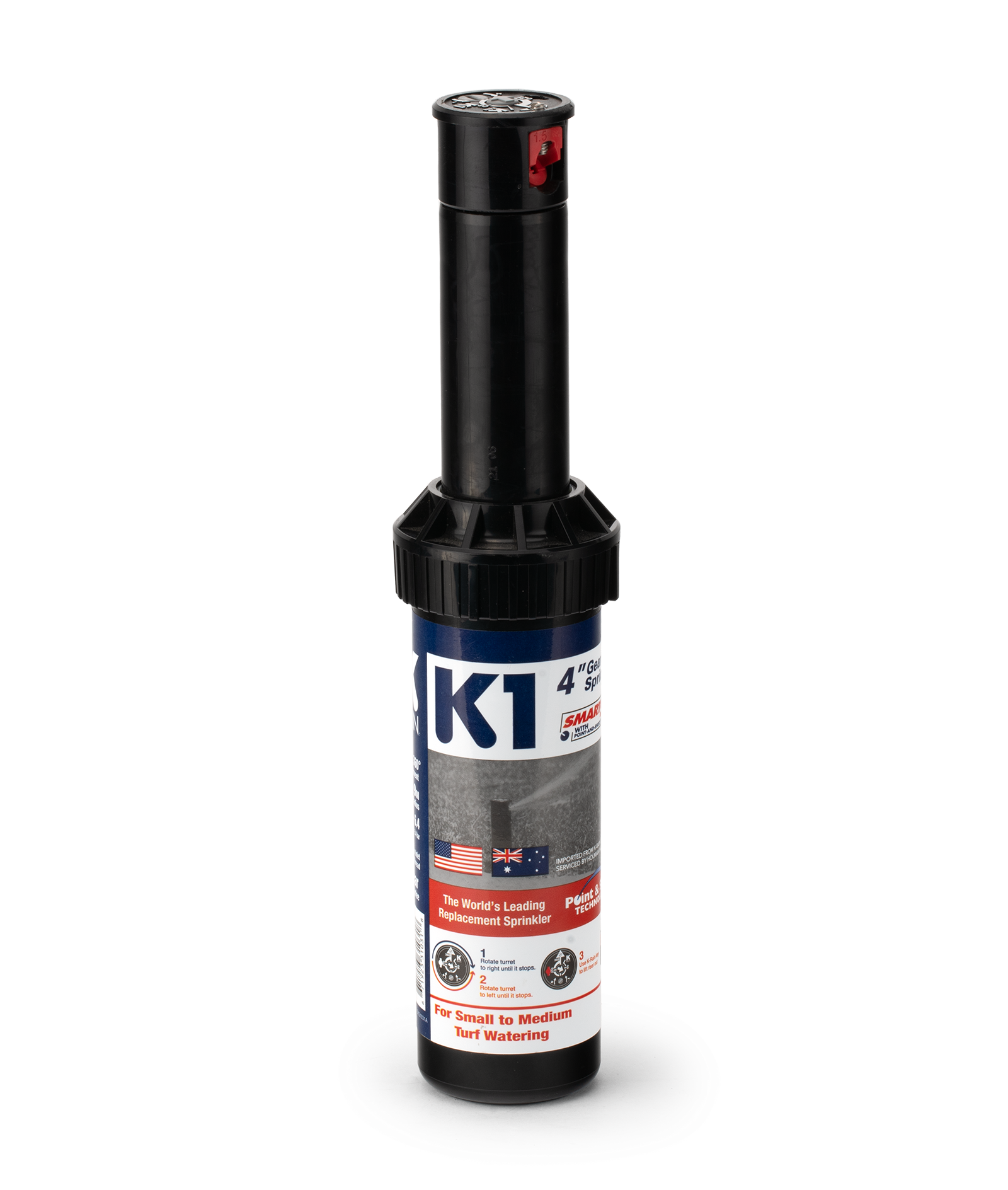

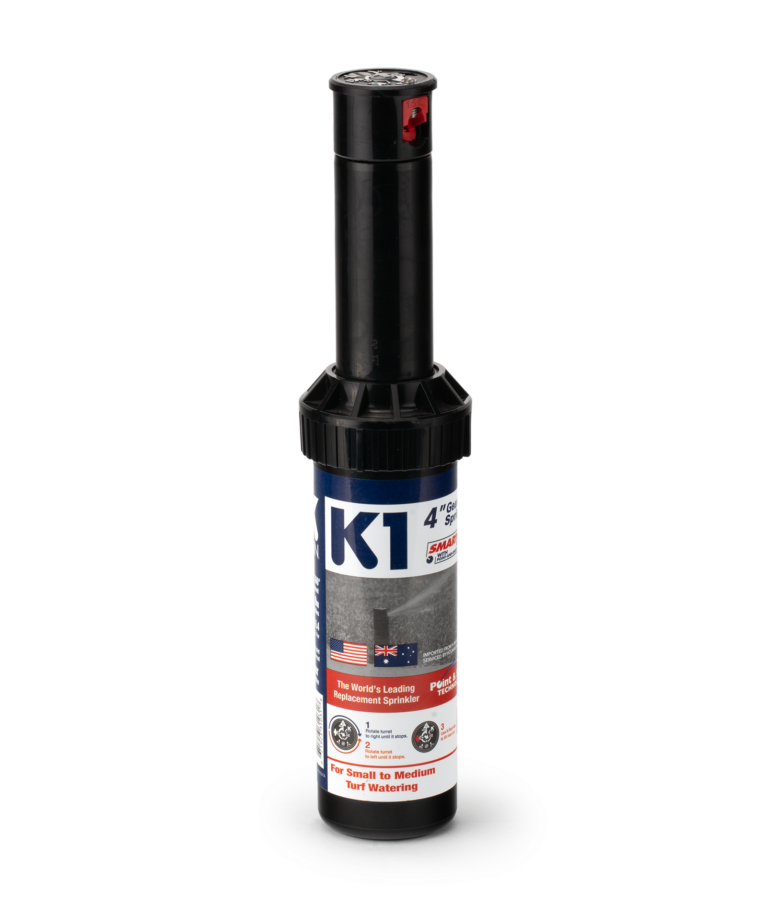

K1 – Gear Drive Sprinkler

The K-Rain K1 delivers a quiet yet thorough performance. This powerful sprinkler features a 7m maximum spray distance and can provide coverage for small to medium size lawns. Ideal for small lawns and replacing fixed popup sprinklers Ratcheting riser Part circle and full circle pattern.

  • Arc Adjustment Range – 40º to 360º.

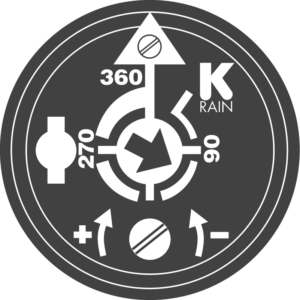

  • Patented Easy Top Arc Indication– Easiest Sprinkler to Set.
  • 4″ Pop Up Height
  • Replaces Fixed Sprays – Promotes Water Conservation
  • Low Flow Nozzles – Ideal for Use in Areas with Restricted Water Flow.
  • Patented Reversing Mechanism – Prolongs Life of Sprinkler.
  • Ratcheting Riser – Allows the Riser to be Turned to Direct the Water Flow.
  • Radius Reduction Screw – Adjust Water Flow and Fallout Pattern Up to 25%.
  • Replaces All Major Brand 1/2″ Rotor Sprinklers and Sprays
  • Nozzles sold separately

SKUSK31031A Category
Close
COMPARISON CHART
Close
Adjustment Video

Adjustment Video

Close
Performance Data

Performance Data

Close
Reviews

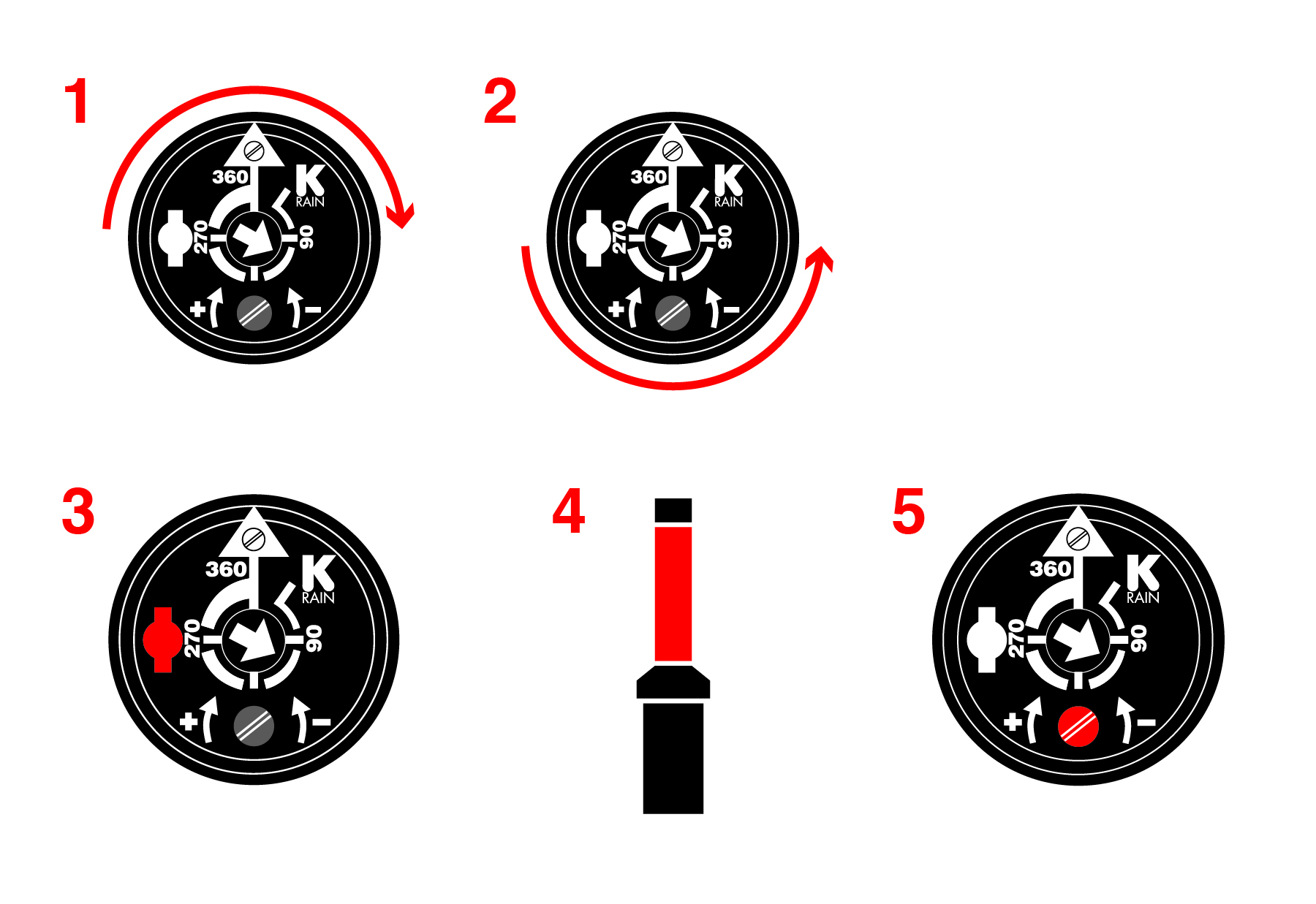

Adjustments:

1. Rotate turrent to the right until it stops
2. Rotate turrent to the left until it stops
3. Use K-Rain key to lift riser out
4. Turn bottom half of riser until nozzle points to arc set
5. Lower the riser back into the sprinkler and insert the K-Rain key into the arc adjuster. Turn until the arrow points to the desired angle

K-Rain K1 Setting Instructions-01

Features:

  • Arch Adjustment: 40º – 360º
  • Spray radius: 5m – 9m
  • Flow Rate: 5.4 – 6.4 LPM
  • Pressure: 2.1 – 3.4 Bar
  • Inlet: 15mm screw thread
  • Riser: Ratcheting Riser
  • Spray pattern: Part and full circle



NozzlePressure kPaRadius MFlow LPM
.75207
276
345
5.8
6.1
6.4
3.03
3.41
4.54
1.0207
276
345
6.7
7.0
7.3
4.16
4.92
5.68
1.5207
276
345
7.9
8.5
9.1
4.54
5.30
6.06
2.0207
276
345
9.1
9.4
9.8
5.30
6.43
7.57
3.0207
276
345
10.1
10.4
10.7
8.71
9.84
11.36
