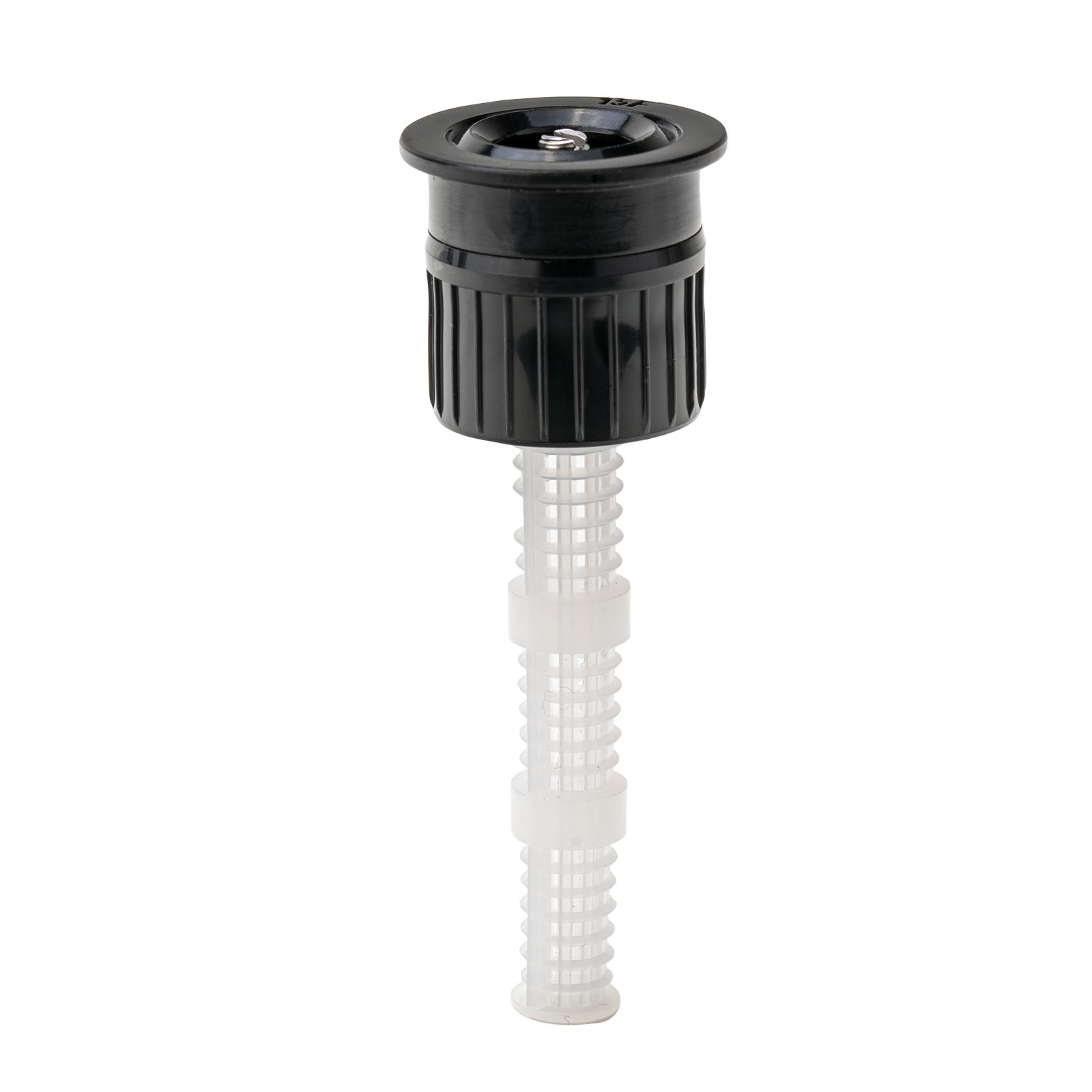

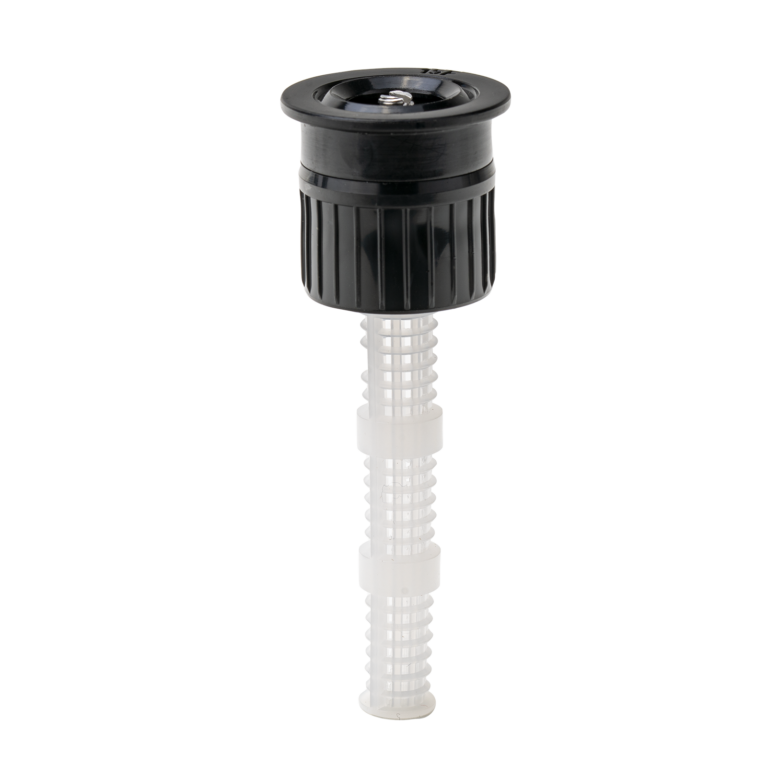

360° Fixed Spray Nozzle 15′ Female

Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Female Thread fixed Nozzles have matched precipitation for even water distribution. Available in six fixed patterns, providing an array of system configurations. Extra long filters provide longer time between cleanings.

  • Fixed 360° spray pattern
  • 4.5m Radius
  • Female Thread
  • Match precipitation

SKUKNF15F Category
Close
Additional information
Thread

Female

Close

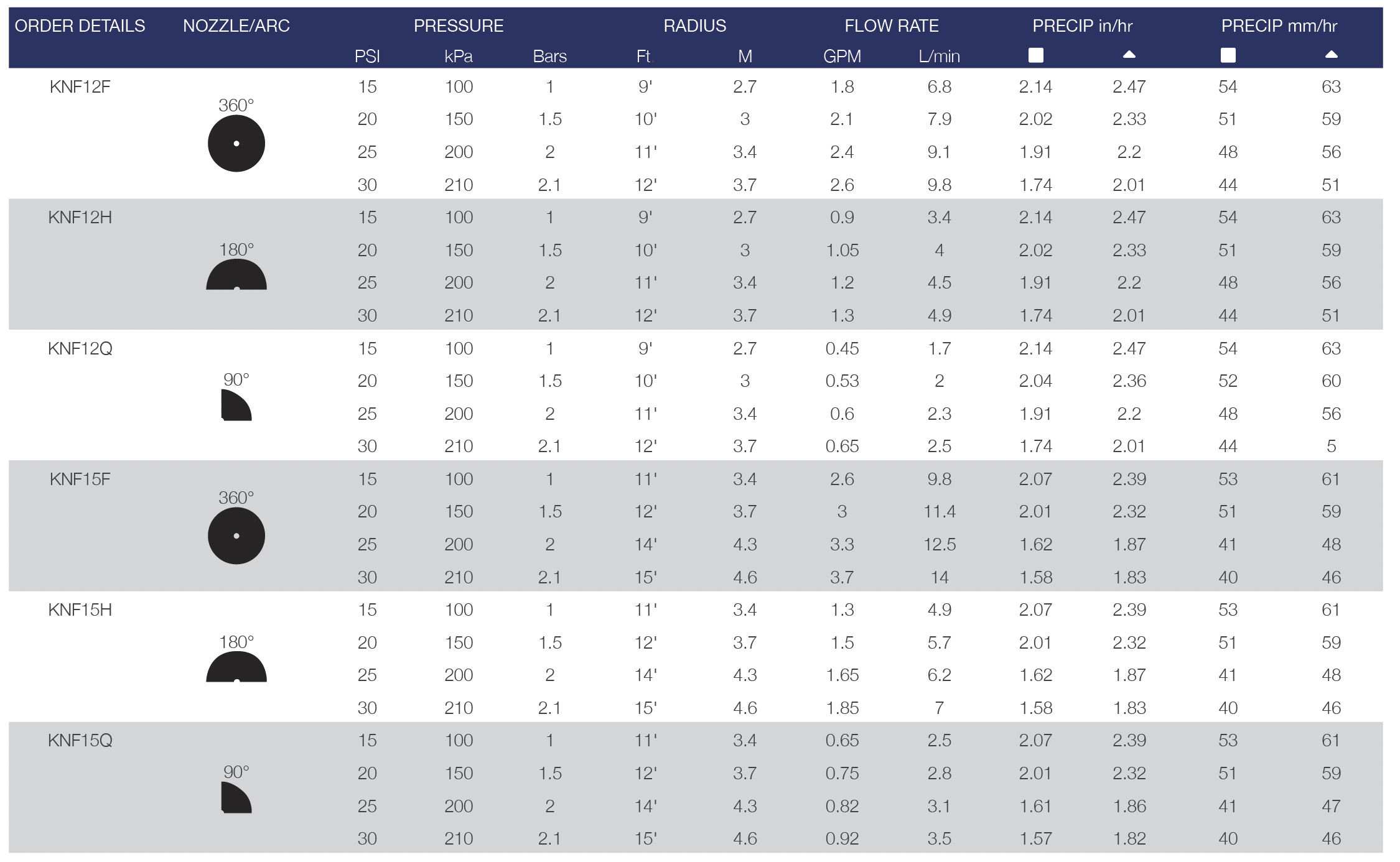

Performance Data

Performance Data

Download Full Performance Data

PatternPressure (kPa)Radius (m)Flow Rate (L/min)Precip. (mm/hour)
90°138
207
276
3.7
4.3
4.6
2.8
3.1
3.5
59
47
46
180°138
207
276
3.7
4.3
4.6
5.7
6.2
7.0
59
47
46
360°138
207
276
3.7
4.3
4.6
11.4
12.5
14.0
59
47
46

Close
Reviews

Range

CodeDescriptionThrowSprayQuantity
KNF12Q12′ Female Thread3.6m90° Quarter Spray1
KNF12H12′ Female Thread3.6m180° Half Spray1
KNF12F12′ Female Thread3.6m360° Full Spray1
KNF15Q15′ Female Thread4.5m90° Quarter Spray1
KNF15H15′ Female Thread4.5m180° Half Spray1
KNF15F15′ Female Thread4.5m360° Full Spray1
KNF12QTP12′ Female Thread Bulk3.6m90° Quarter Spray20
KNF12HTP12′ Female Thread Bulk3.6m180° Half Spray20
KNF12FTP12′ Female Thread Bulk3.6m360° Full Spray20
KNF15QTP15′ Female Thread Bulk4.5m90° Quarter Spray20
KNF15HTP15′ Female Thread Bulk4.5m180° Half Spray20
KNF15FTP15′ Female Thread Bulk4.5m360° Full Spray20
