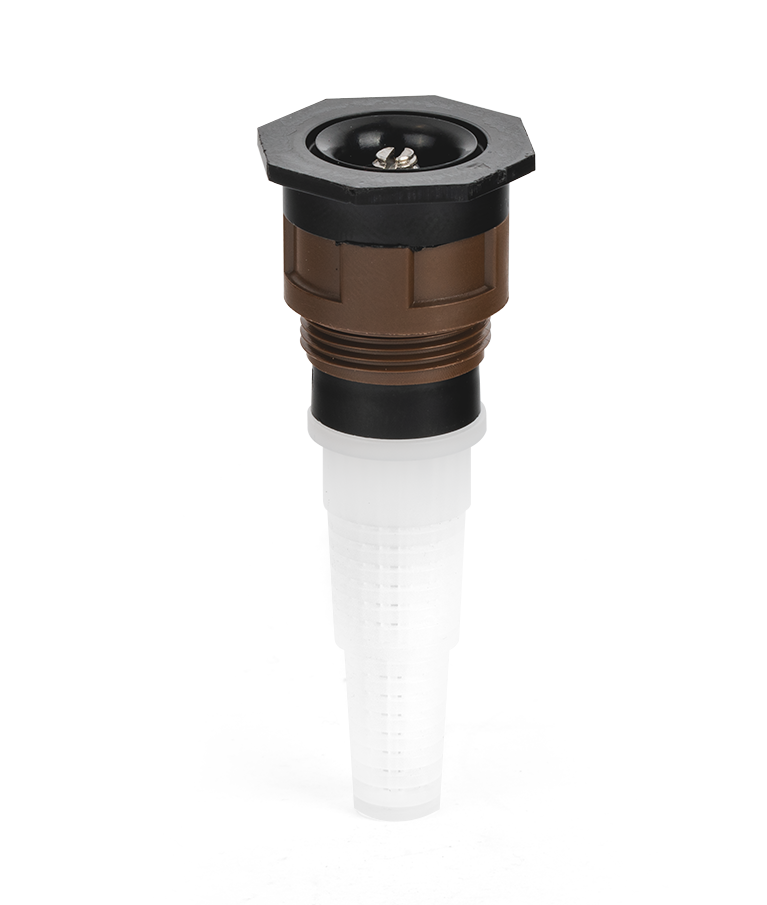

360° Fixed Spray Nozzle 12′ 3.6m Male

Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Male Thread fixed Nozzles have matched precipitation for even water distribution. Available in six fixed patterns, providing an array of system configurations. Extra long filters provide longer time between cleanings.

  • Fixed 360° spray pattern
  • 3.6m Radius
  • Male Thread
  • Matched precipitation

SKUKNM12F Category
Close

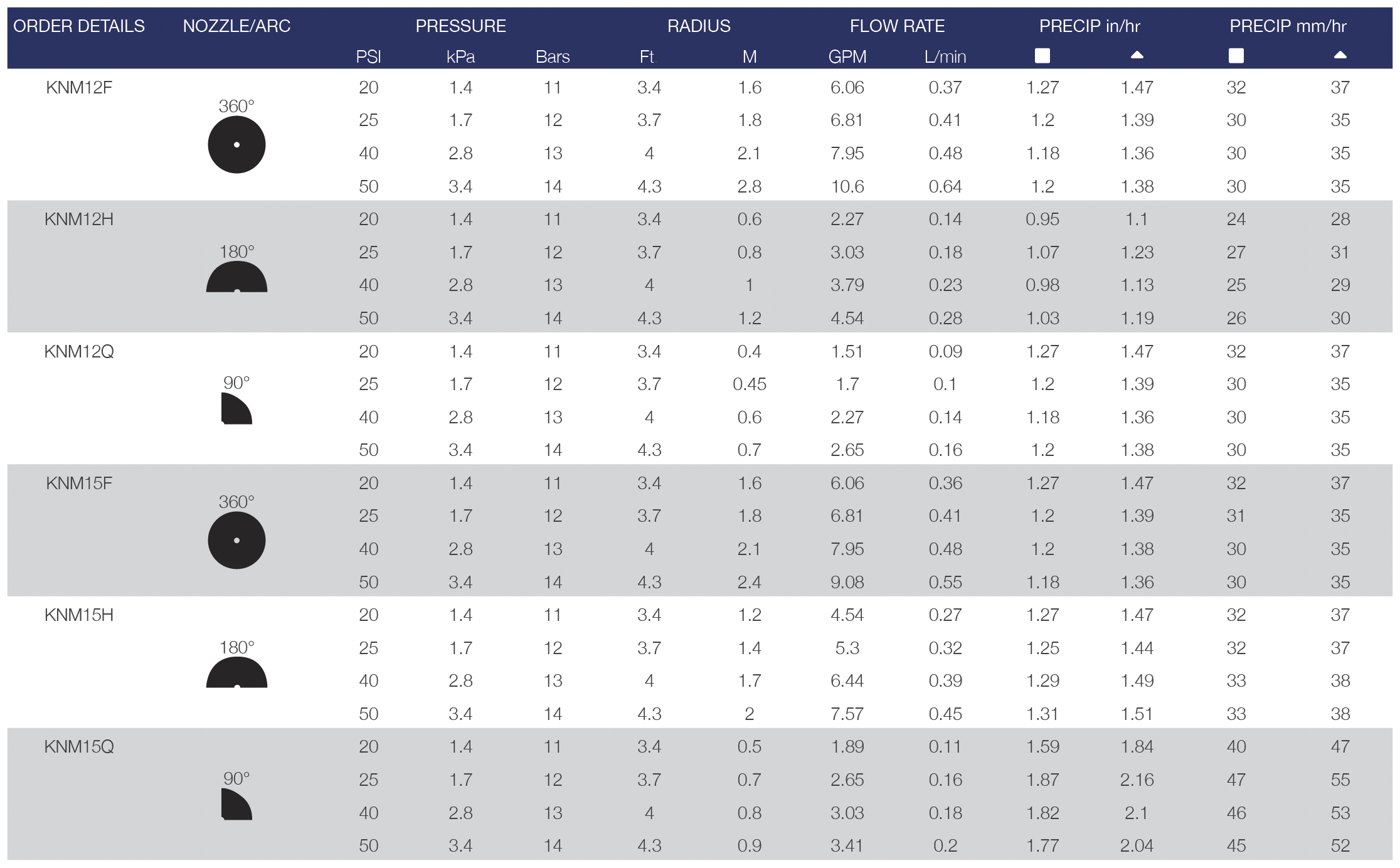

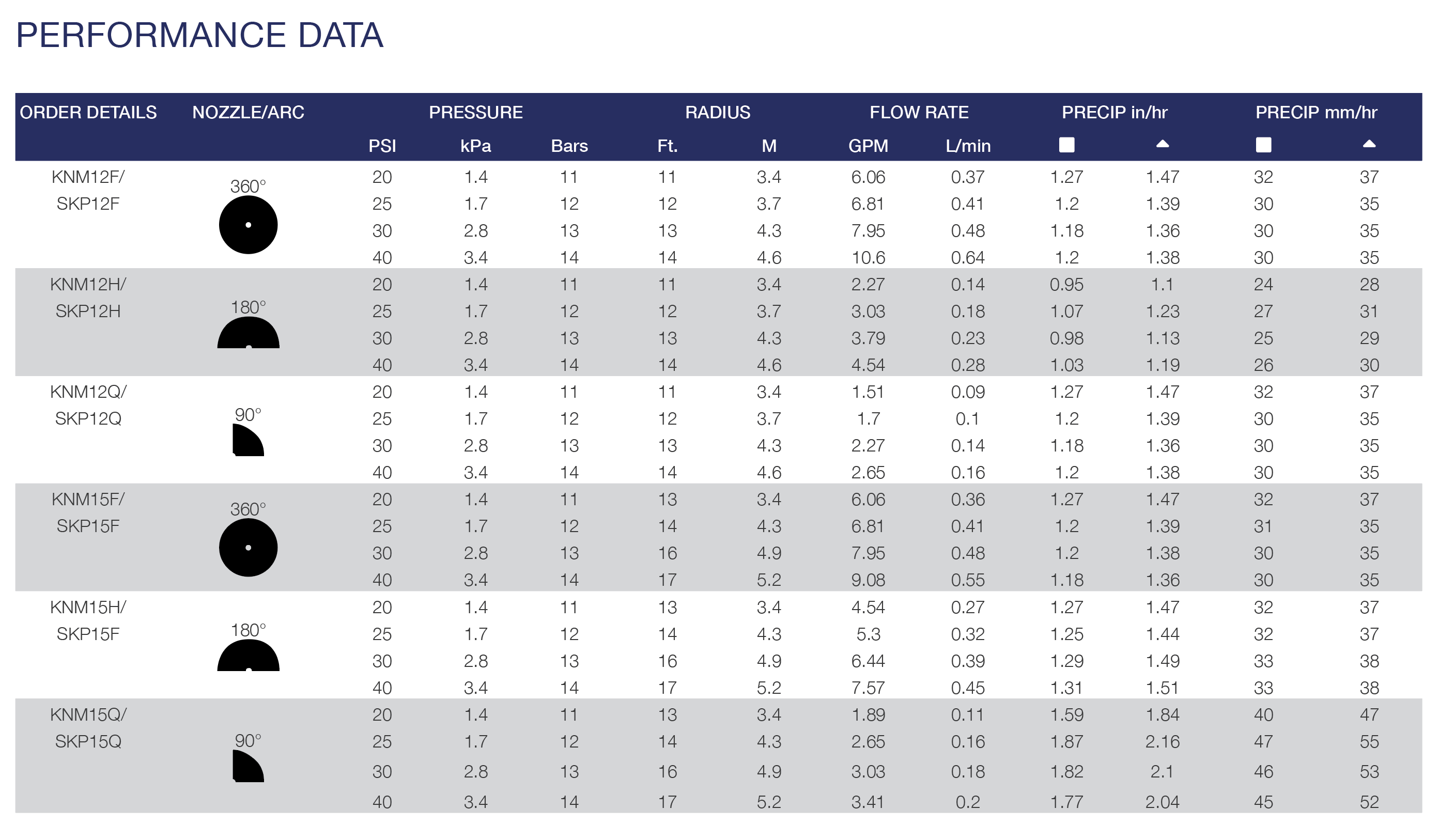

Performance Data

Performance Data

Download Full Performance Data

PatternPressure
(kPa)
Radius
(m)
Flow Rate
(L/min)
Precip. (mm/hour)
/
90°138
170
275
345
3.4
3.7
4.0
4.3
1.51
1.70
2.27
2.65
32 / 37
30 / 35
30 / 35
30 / 35
180°138
170
275
345
3.4
3.7
4.0
4.3
2.27
3.03
3.79
4.54
24 / 28
27 / 31
25 / 29
26 / 30
360°138
170
275
345
3.4
3.7
4.0
4.3
6.06
6.81
7.95
10.6
32 / 37
30 / 35
30 / 35
30 / 35

Close
Reviews

Range

Male Thread Fixed Pattern Spray Nozzles deliver superior matched precipitation for the most popular arc settings. Carefully designed to provided superior coverage while minimizing wind drift, our nozzles feature patterns with precise edges.



CodeDescriptionThrowSprayQuantity
KNM12Q12′ Male Thread3.6m90° Quarter Spray1
KNM12H12′ Male Thread3.6m180° Half Spray1
KNM12F12′ Male Thread3.6m360° Full Spray1
KNM15Q15′ Male Thread4.5m90° Quarter Spray1
KNM15H15′ Male Thread4.5m180° Half Spray1
KNM15F15′ Male Thread4.5m360° Full Spray1
