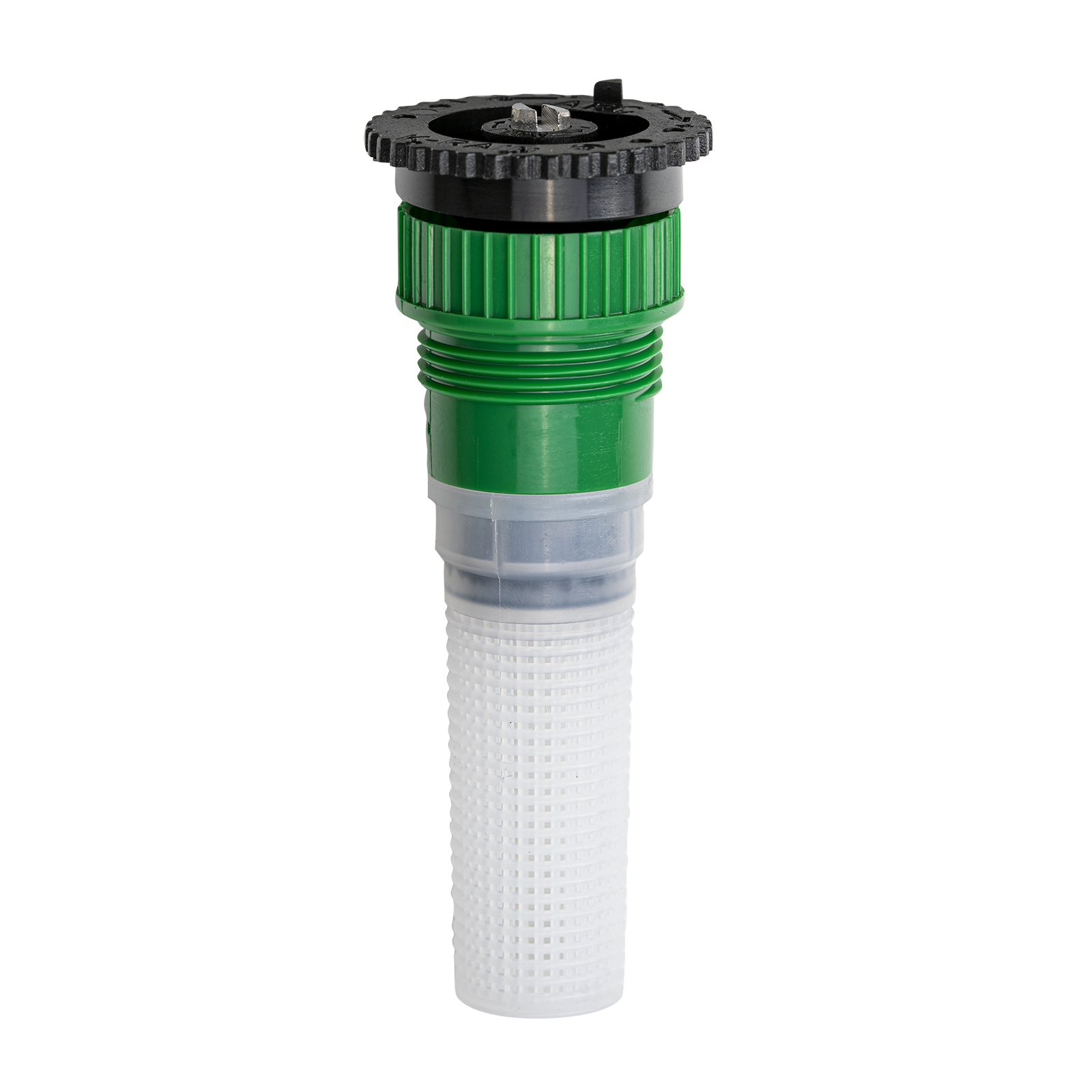

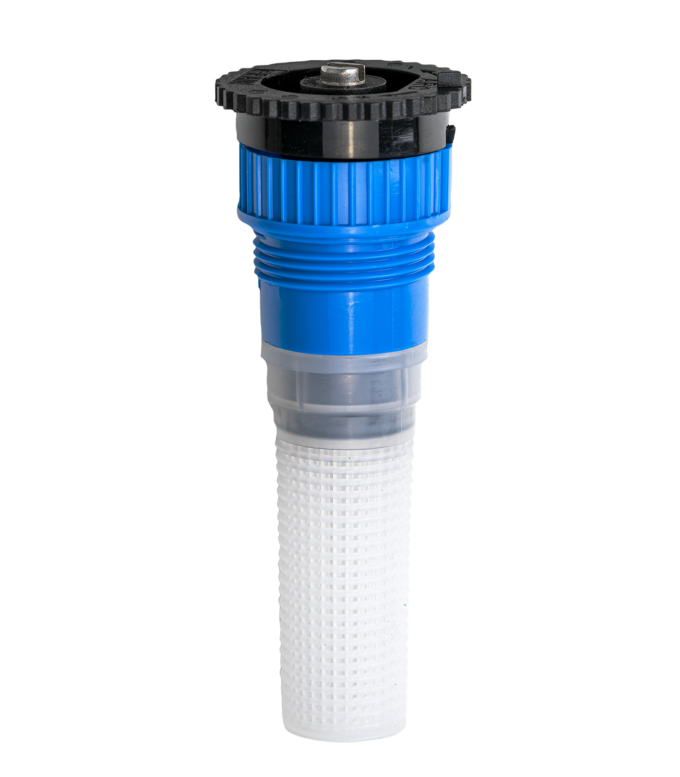

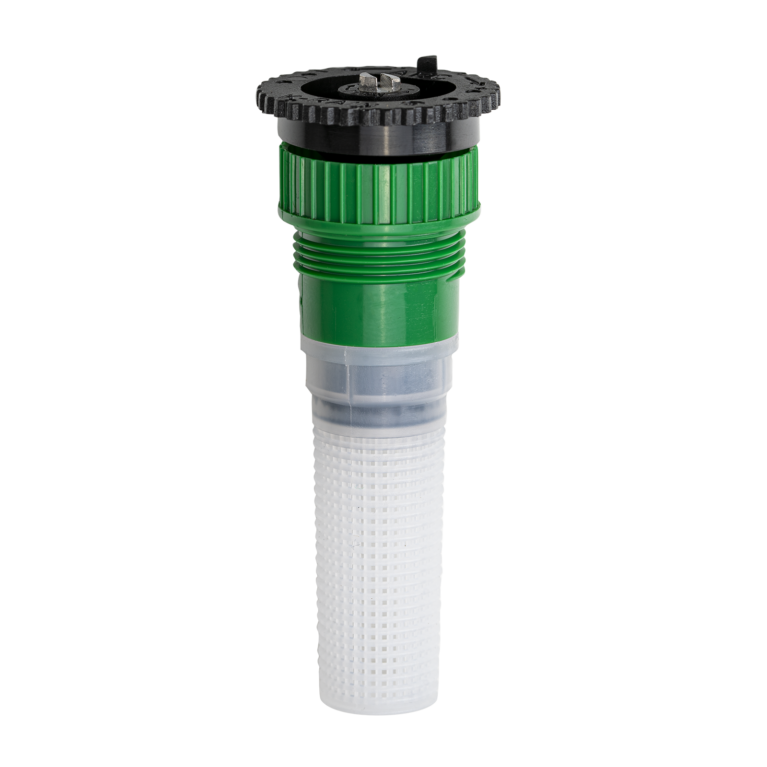

Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.
Download Full Performance Data
| Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
|---|---|---|---|---|
| 90° | 138 207 276 345 | 2.1 2.4 2.4 2.7 | 1.14 1.51 1.51 1.51 | 69 70 70 56 |
| 180° | 138 207 276 345 | 2.1 2.4 2.4 2.7 | 3.03 3.41 3.79 4.16 | 92 79 88 77 |
| 270° | 138 207 276 345 | 2.1 2.4 2.4 2.7 | 4.54 4.54 4.92 5.68 | 92 70 76 70 |
| 360° | 138 207 276 345 | 2.1 2.4 2.4 2.7 | 7.19 7.57 8.33 8.71 | 109 88 97 80 |
| Code | Description | Throw | Spray | Quantity |
|---|---|---|---|---|
| KNMV8 | 8′ Male Thread | 2.4m | 0-360° Adjustable Spray | 1 |
| KNMV10 | 10′ Male Thread | 3m | 0-360° Adjustable Spray | 1 |
| KNMV12 | 12′ Male Thread | 3.6m | 0-360° Adjustable Spray | 1 |
| KNMV15 | 15′ Male Thread | 4.5m | 0-360° Adjustable Spray | 1 |

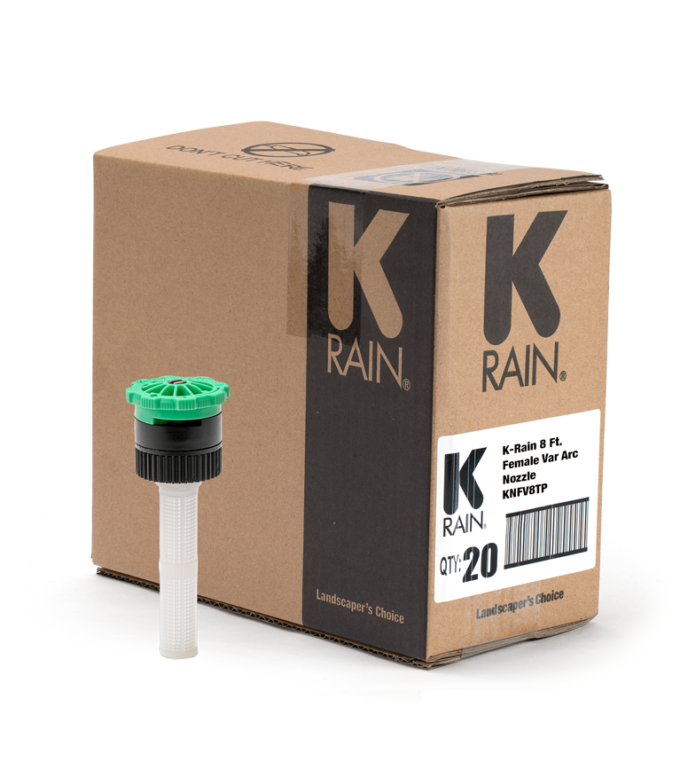

| KNMV8TP | 8′ Male Thread Bulk | 2.4m | 0-360° Adjustable Spray | 20 |
| KNMV10TP | 10′ Male Thread Bulk | 3m | 0-360° Adjustable Spray | 20 |
| KNMV12TP | 12′ Male Thread Bulk | 3.6m | 0-360° Adjustable Spray | 20 |
| KNMV15TP | 15′ Male Thread Bulk | 4.5m | 0-360° Adjustable Spray | 20 |
