Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.
• Adjustable spray pattern from 0° to 360°
• 3m Radius
• Male Thread
• Match precipitation – across various radii and patterns
Download Full Performance Data
| Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
|---|---|---|---|---|
| 90° | 138 207 276 345 | 3.7 3.7 4.0 4.3 | 2.65 4.16 5.30 5.68 | 55 86 93 86 |
| 180° | 138 207 276 345 | 3.4 3.4 3.7 4.0 | 5.30 6.06 6.81 7.57 | 65 75 70 67 |
| 270° | 138 207 276 345 | 3.1 3.1 3.4 3.7 | 6.44 7,57 8.71 9.84 | 64 75 71 68 |
| 360° | 138 207 276 345 | 3.1 3.1 3.4 3.7 | 8.33 10.22 11.36 13.25 | 62 76 70 69 |
| Code | Description | Throw | Spray | Quantity |
|---|---|---|---|---|

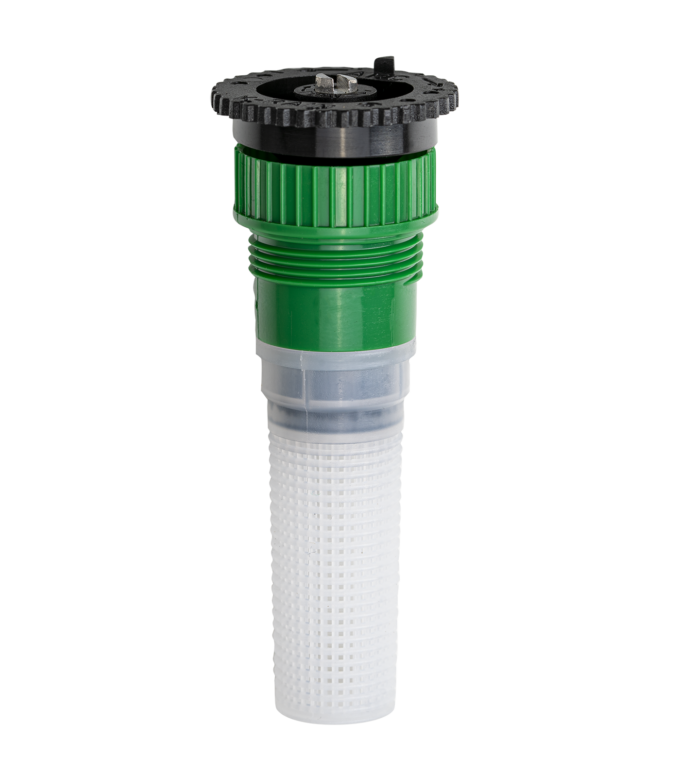

| KNMV8 | 8′ Male Thread | 2.4m | 0-360° Adjustable Spray | 1 |

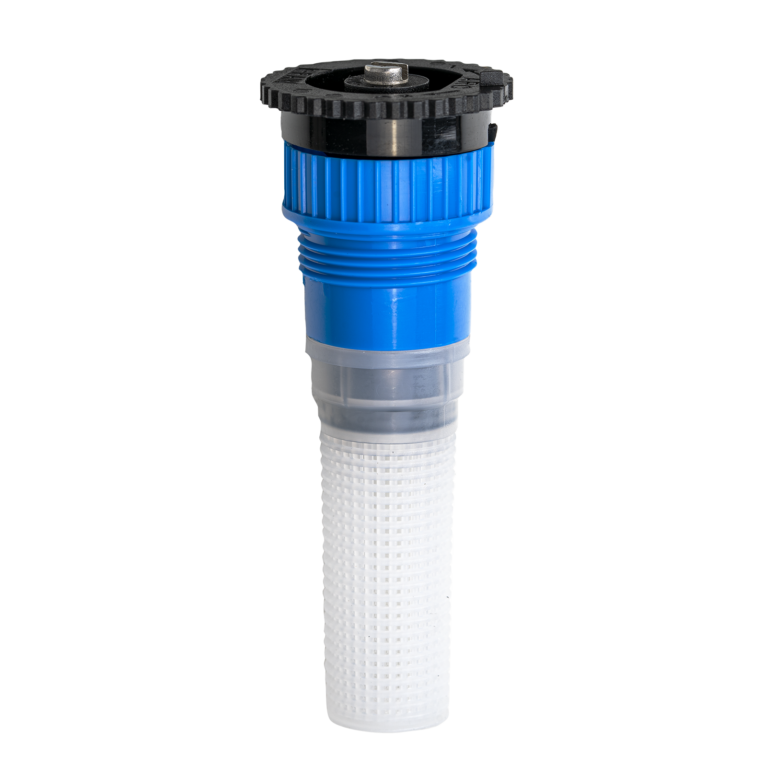

| KNMV10 | 10′ Male Thread | 3m | 0-360° Adjustable Spray | 1 |
| KNMV12 | 12′ Male Thread | 3.6m | 0-360° Adjustable Spray | 1 |
| KNMV15 | 15′ Male Thread | 4.5m | 0-360° Adjustable Spray | 1 |

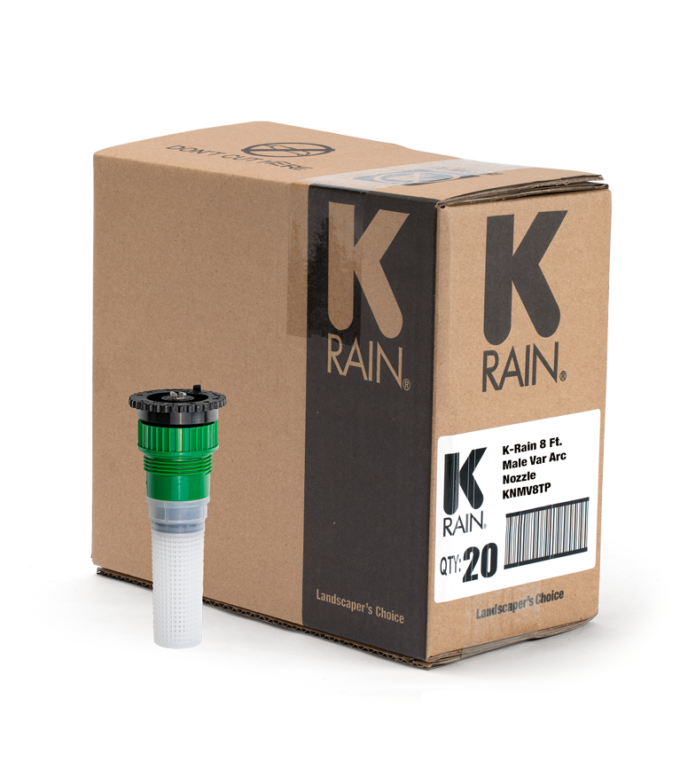

| KNMV8TP | 8′ Male Thread Bulk | 2.4m | 0-360° Adjustable Spray | 20 |

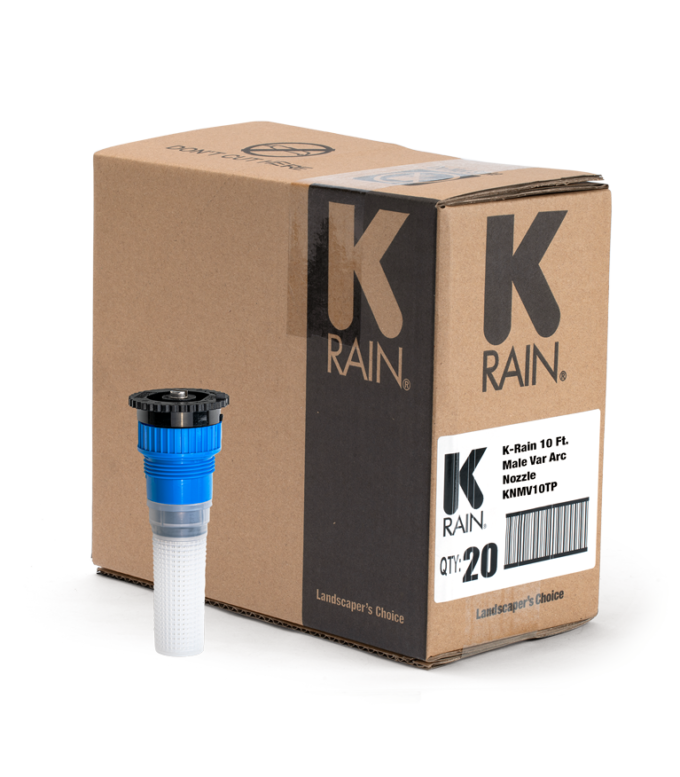

| KNMV10TP | 10′ Male Thread Bulk | 3m | 0-360° Adjustable Spray | 20 |
| KNMV12TP | 12′ Male Thread Bulk | 3.6m | 0-360° Adjustable Spray | 20 |
| KNMV15TP | 15′ Male Thread Bulk | 4.5m | 0-360° Adjustable Spray | 20 |
