| Thread | Female |
|---|

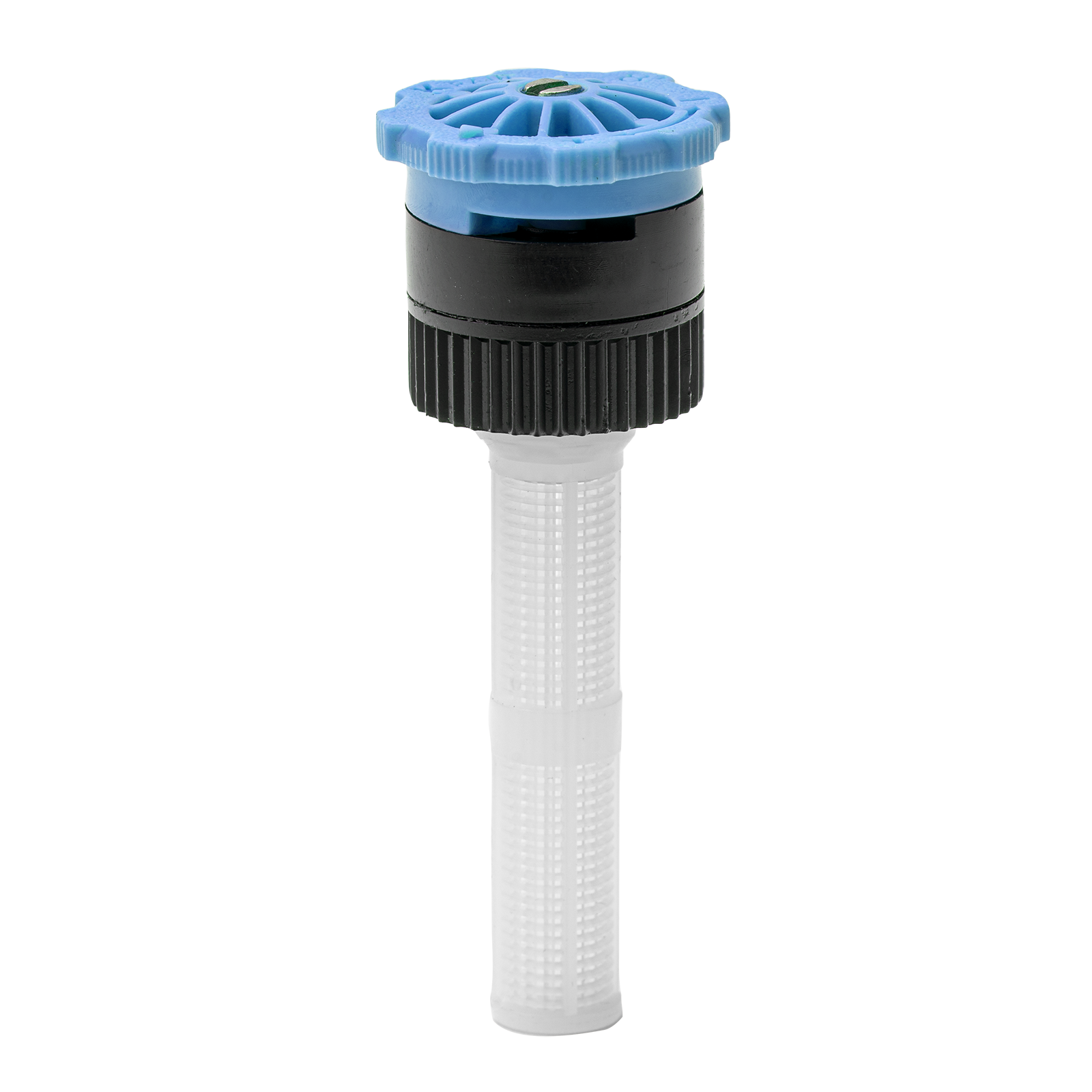

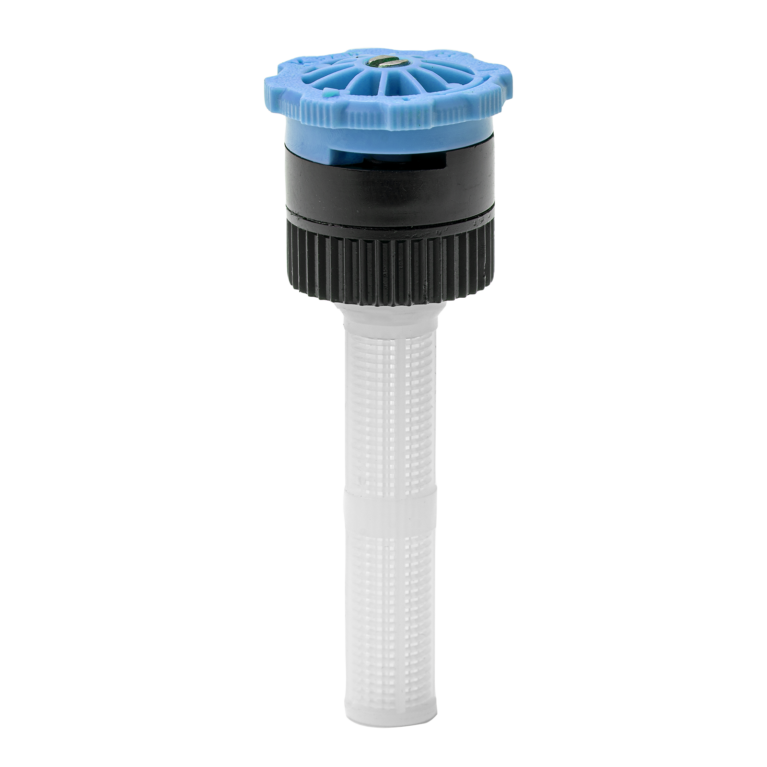

Adjustable Spray Nozzle 10′ Female
Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.
- Adjustable spray pattern from 0° to 360°
- 3m Radius
- Female Thread
- Match precipitation – across various radii and patterns
Add to WishlistRemove from Wishlist
Add to Wishlist
Performance Data
Performance Data
Download Full Performance Data
| Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
|---|---|---|---|---|
| 90° | 138 207 276 345 | 3.05 3.35 3.66 3.66 | 1.70 2.04 2.35 2.65 | 42 42 40 46 |
| 180° | 138 207 276 345 | 3.05 3.35 3.66 3.66 | 3.41 4.16 4.73 5.30 | 42 43 41 46 |
| 270° | 138 207 276 345 | 3.05 3.35 3.66 3.66 | 5.11 6.25 7.00 7.95 | 42 43 40 46 |
| 360° | 138 207 276 345 | 3.05 3.35 3.66 3.66 | 6.81 8.33 9.46 10.60 | 42 43 41 46 |
Reviews
Range
| Code | Description | Throw | Spray | Quantity |
|---|---|---|---|---|
| KNFV8 | 8′ Female Thread | 2.4m | 0-360° Adjustable Spray | 1 |
| KNFV10 | 10′ Female Thread | 3m | 0-360° Adjustable Spray | 1 |
| KNFV12 | 12′ Female Thread | 3.6m | 0-360° Adjustable Spray | 1 |
| KNFV15 | 15′ Female Thread | 4.5m | 0-360° Adjustable Spray | 1 |
| KNFV8TP | 8′ Female Thread Bulk | 2.4m | 0-360° Adjustable Spray | 20 |
| KNFV10TP | 10′ Female Thread Bulk | 3m | 0-360° Adjustable Spray | 20 |
| KNFV12TP | 12′ Female Thread Bulk | 3.6m | 0-360° Adjustable Spray | 20 |
| KNFV15TP | 15′ Female Thread Bulk | 4.5m | 0-360° Adjustable Spray | 20 |
