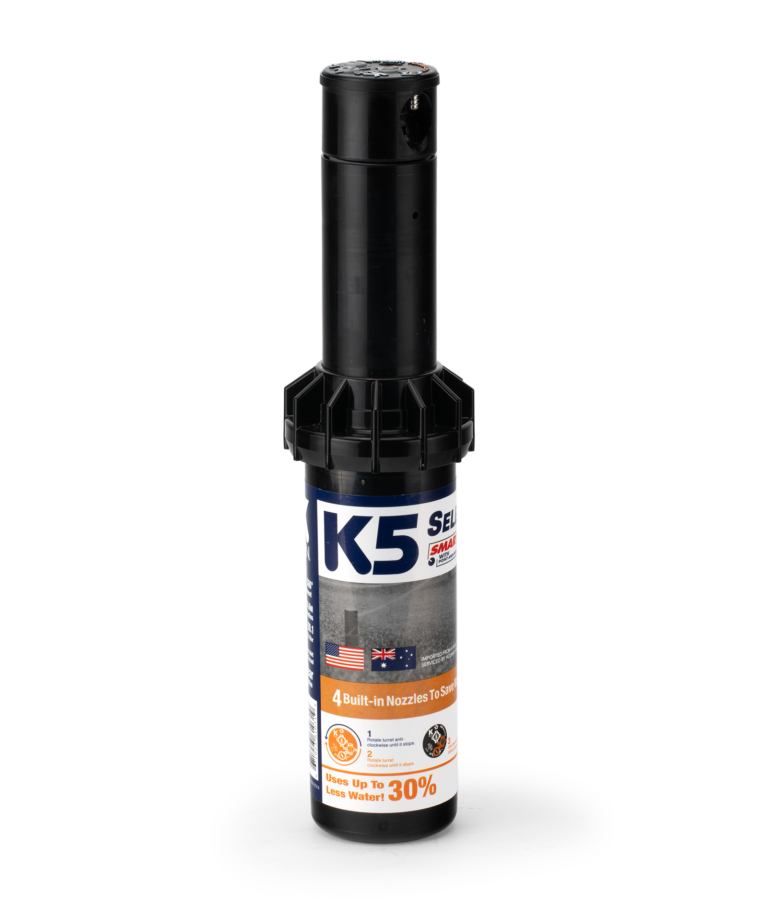

K5 – Gear Drive Sprinkler

Enjoy installation convenience and matched precipitation without hassles. K-Rain’s new RPS Select rotor sprinkler is the first gear-driven sprinkler that makes matched precipitation fast and easy, without the need for cumbersome changing of nozzles or sprinkler heads in the field. The RPS Select offers a choice of 4 selectable nozzles built- in. With a twist of a screwdriver, quickly select the correct nozzle flow to match the arc setting of the sprinkler, wet or dry. No nozzles trees to carry or lose. Fewer chances for errors. Using a combination of the four nozzles, it’s easy to achieve matched precipitation across all arc settings.

The K-Rain K5 has 4 built-in water saving nozzles to help you reduce water consumption up to 30%. Simply select the spray pattern and corresponding water saving nozzle for uniform watering. This rotor sprinkler gear drive is designed for basic residential and light commercial applications, and is a direct replacement for Hunter PGP® rotors.

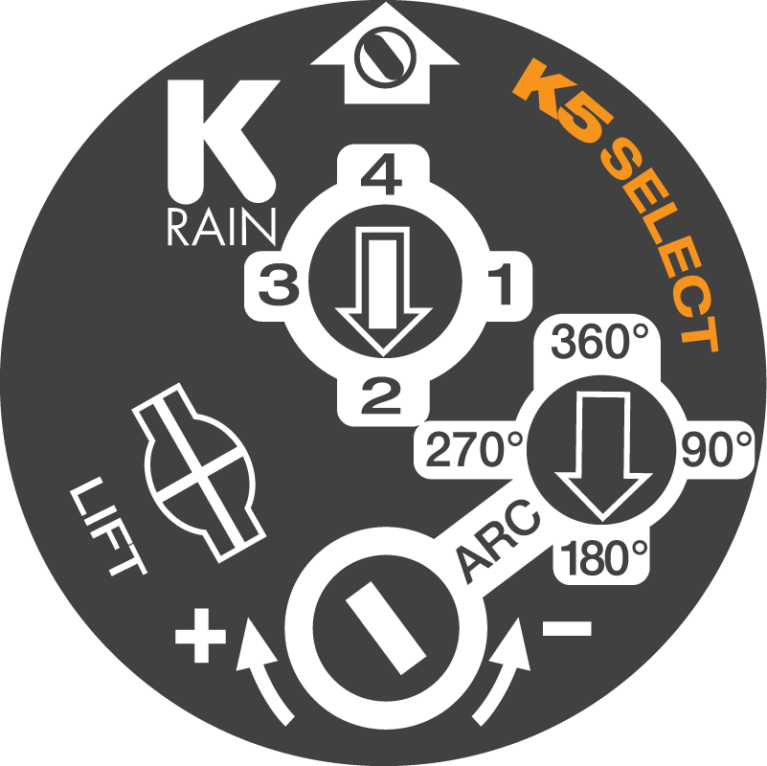

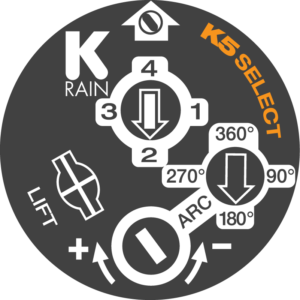

  • Four built-in selectable nozzles to match different arc settings (#1 – #4).
  • Adjustable arc (40° to 360°). All adjustments made from top – wet or dry. No special tools needed.
  • Balanced precipitation rates when nozzle setting matched to arc.
  • Precision-engineered nozzles for water saving efficiency.
  • Standard rubber cover
  • Proven water-lubricated gear-drive design common to RPS 75 Series. Large dirty-water screen for compatibility with reclaimed and recycled water sources.
  • Internal assembly interchanges with Hunter® PGP® rotors.
  • Low-pressure operation.

Buy Online at Bunnings
SKUSK61031 Categories, Tags, ,
Close
Instructions
Close
COMPARISON CHART
Close
Reviews

Features:

  • Arch Adjustment: 40º – 360º
  • Spray radius: 6.7m – 14.6m
  • Flow Rate: 4.9 – 20.1 LPM at 2.8 Bar
  • Inlet: 20mm screw thread
  • Riser: Ratcheting Riser and tamper-resistant clutch
  • Spray pattern: Part and full circle
  • Nozzles: Four built in nozzles

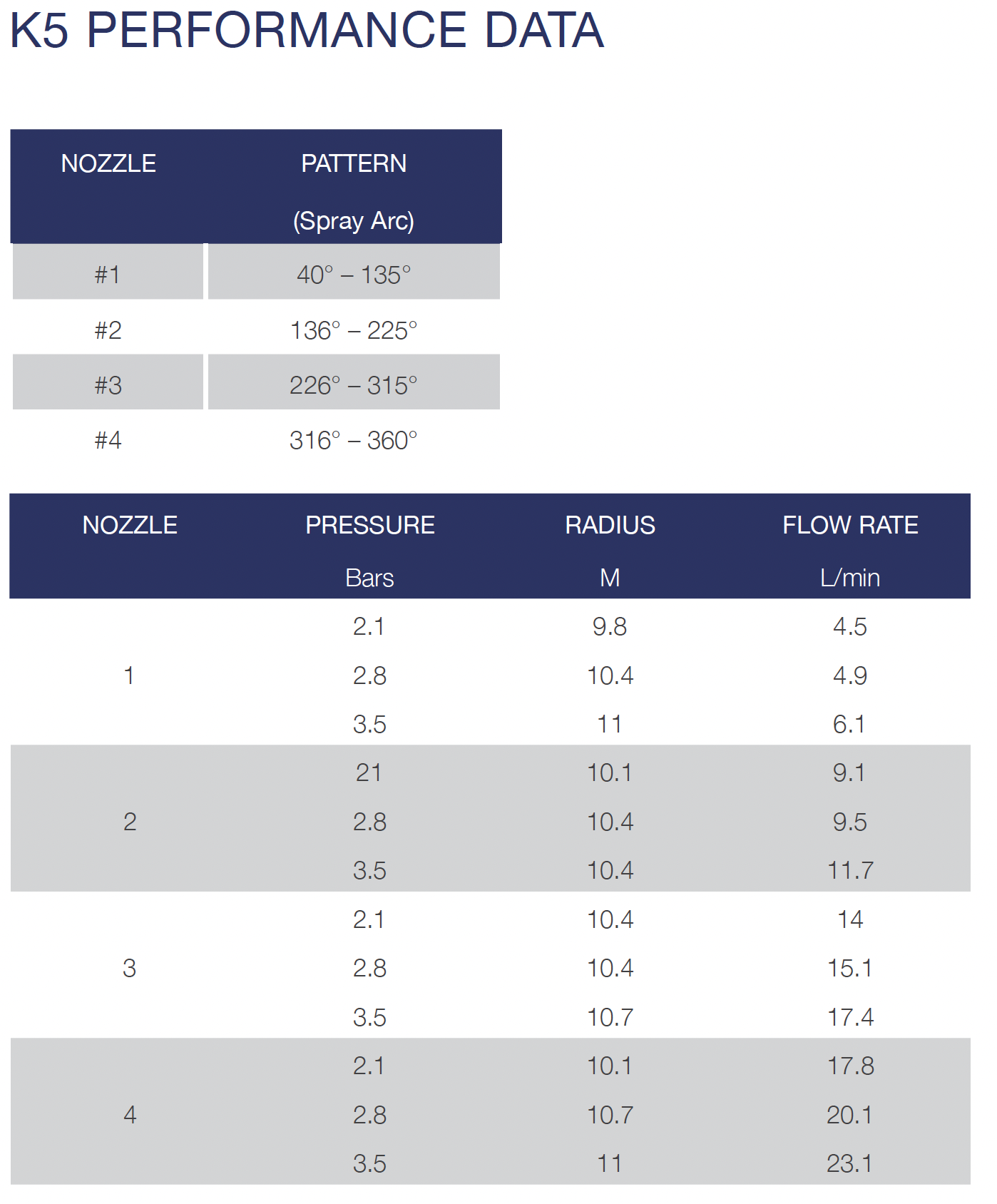

NozzlePressure kPaRadius MFlow LPM
1206
275
345
9.8
10.4
11.0
4.5
4.9
6.1
2206
275
345
10.1
10.4
10.4
9.1
9.5
11.7
3206
275
345
10.4
10.4
10.7
14.0
15.1
17.4
4206
275
345
10.1
10.7
11.0
17.8
20.1
23.1
