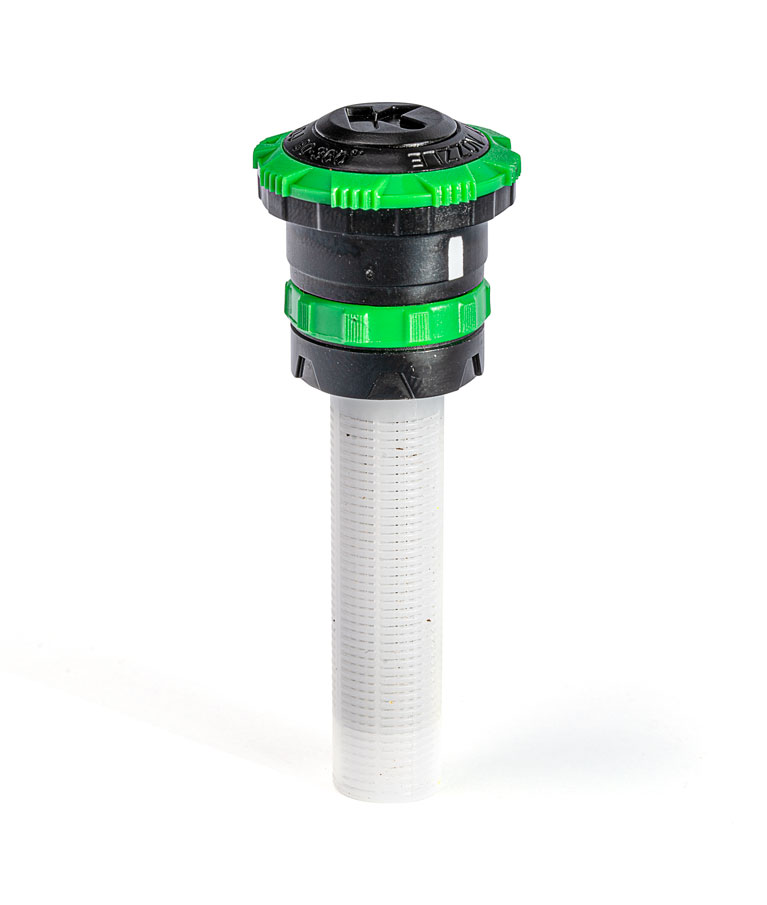

3.9-4.6m Adjustable Rotary Nozzle – DIY Series

K-Rain’s revolutionary multi-stream technology will maximize your sprinkler system’s efficiency while beautifying your lawn and landscape.

  • Durable design: Molded with high-impact engineered resin for long life
  • Superior uniformity: Multi-stream technology provides outstanding coverage eliminating brown spots
  • Matched precipitation: Low precipitation rate is proportionate even after arc and radius adjustment
  • Water-smart technology: Reduce water usage up to 30% without sacrificing turf quality
  • Double pop-up design: Delivers additional protection from dirt/particulate intrusion and harsh conditions
  • Simple to adjust: Easiest adjustment in the industry with no tools required
  • Color-coded: Easily identify 6 standard nozzles and 3 specialty nozzles in the field

Close
Performance Data

Performance Data

Download Rotary Nozzle Performance Data

ArcPressure (kPa)Radius (m)Flow Rate (L/min)Precip. (mm/hour)
90°207
276
345
3.96
4.27
4.57
0.83
0.95
1.14
12
12
12
180°207
276
345
3.96
4.27
4.57
1.67
1.89
2.27
12
12
12
360°207
276
345
3.96
4.27
4.57
3.41
3.79
4.54
12
12
12
Close
MANUAL
Close
Reviews

Features

  • Adjustable spray circle: 80°-360°
  • Throw radius: 3.9-4.6m
  • Female Thread
  • Precipitation rate: 11–14mm/hr
  • Recommended spacing: 2.9m-4.3m
  • Pressure rating: 137–345kPa

Range

CodeDescriptionThrowSprayQuantity
RN100-ADJDIY Series Rotary Nozzle3.9-4.6m80°-360° Adjustable Spray1
RN200-ADJDIY Series Rotary Nozzle4.9-5.8m80°-360° Adjustable Spray1
RN300-ADJDIY Series Rotary Nozzle7.9-9.1m80°-360° Adjustable Spray1
RN100-ADJTPDIY Series Rotary Nozzle Bulk3.9-4.6m80°-360° Adjustable Spray12
RN200-ADJTPDIY Series Rotary Nozzle Bulk4.9-5.8m80°-360° Adjustable Spray12
RN300-ADJTPDIY Series Rotary Nozzle Bulk7.9-9.1m80°-360° Adjustable Spray12
