The MiniPro is a gear-driven, rotary type sprinkler, capable of covering an area of 18′ to 36′ (5.5 to 11.0 M) radius at nozzle pressure of 30 to 50 PSI (2.1 to 3.5 bar) with a discharge rate of .75 to 3.3 GPM (2.84 to 12.5 LPM). The MiniPro is supplied with five (5) numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 26°. The sprinkler has a stainless steel radius adjustment screw.

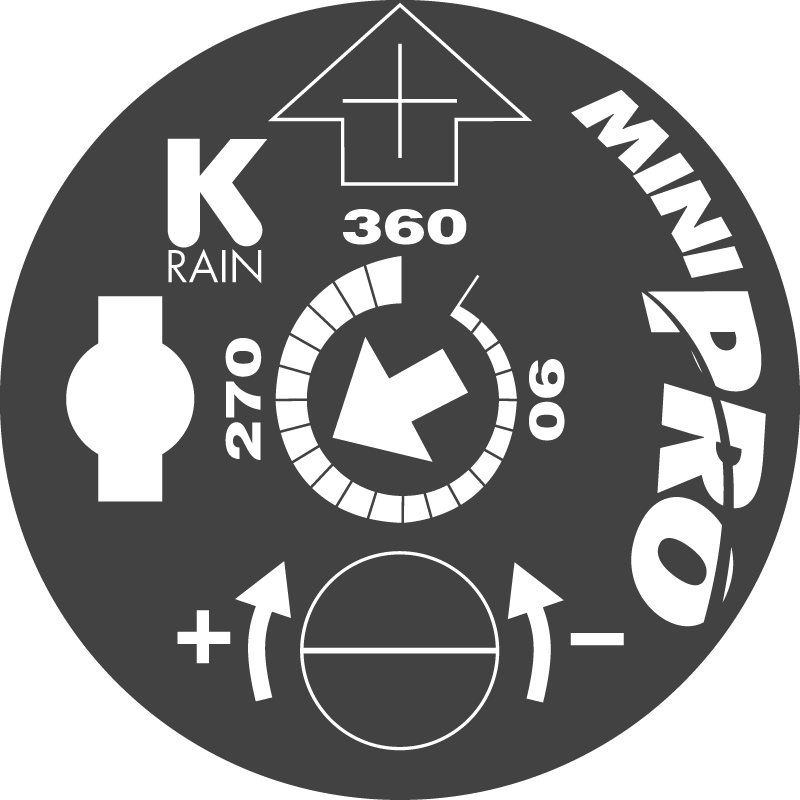

The MiniPro provides arc adjustment from 40° to 360°. Sprinkler arc setting adjustment is carried out by rotation of a flat blade screwdriver within top cover adjustment slot. Sprinkler coverage pattern is indicated by degree graduations and an arrow located on top of the sprinkler. The MiniPro is adjustable in all phases of installation (i.e., before installation, after installation while static, and after installation while in operation).
- Inlet: 1/2″ Threaded NPT
- Arc Adjustment Range: 40° to 360°
- Flow Range: .8-3.3 GPM
- Pressure Rating: 20-70 PSI
- Precipitation Rate: .26 to .60 Inches Per Hour (Depending on Spacing and Nozzle Used)
- Overall Height (Popped Down): 6″
- Recommended Spacing: 17′ to 28′
- Radius: 18′ to 36′
- Nozzle Trajectory: 26°
- Riser Height: 4″, 6″ or 12″
|SK13003||MINIPRO 4″||Rotor Sprinkler|
|SK13006||MINIPRO 6″||Rotor Sprinkler|
|SK13012||MINIPRO 12″||Rotor Sprinkler|
