MiniPro Gear Drive Sprinkler 6″

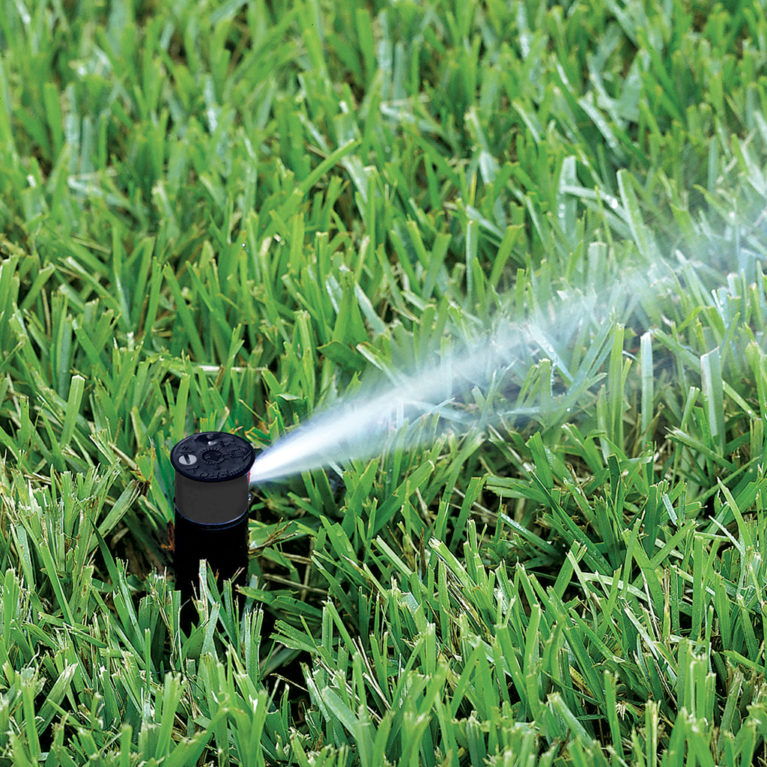

The MiniPro is a gear-driven, rotary type sprinkler, capable of covering an area of 18′ to 36′ (5.5 to 11.0 M) radius at nozzle pressure of 30 to 50 PSI (2.1 to 3.5 bar) with a discharge rate of .75 to 3.3 GPM (2.84 to 12.5 LPM). The MiniPro is supplied with five (5) numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 26°. The sprinkler has a stainless steel radius adjustment screw.

• Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
• Adjustable to 360 Degrees – Provides a full range of adjustment from 40 to 360 degrees
• Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 20 year history
• Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser
• Rubber Cover – Seals out dirt and increases product durability

SKUSK13006 Category
Close
Specifications

Specifications

  • Inlet: 1/2″ Threaded NPT
  • Arc Adjustment Range: 40° to 360°
  • Flow Range: .8-3.3 GPM
  • Pressure Rating: 20-70 PSI
  • Precipitation Rate: .26 to .60 Inches Per Hour (Depending on Spacing and Nozzle Used)
  • Overall Height (Popped Down): 6″
  • Recommended Spacing: 17′ to 28′
  • Radius: 18′ to 36′
  • Nozzle Trajectory: 26°
  • Riser Height: 4″, 6″ or 12″
Close
Instructions
Close
ADJUSTMENTS

ADJUSTMENTS

The MiniPro provides arc adjustment from 40° to 360°. Sprinkler arc setting adjustment is carried out by rotation of a flat blade screwdriver within top cover adjustment slot. Sprinkler coverage pattern is indicated by degree graduations and an arrow located on top of the sprinkler. The MiniPro is adjustable in all phases of installation (i.e., before installation, after installation while static, and after installation while in operation).

Close
Reviews

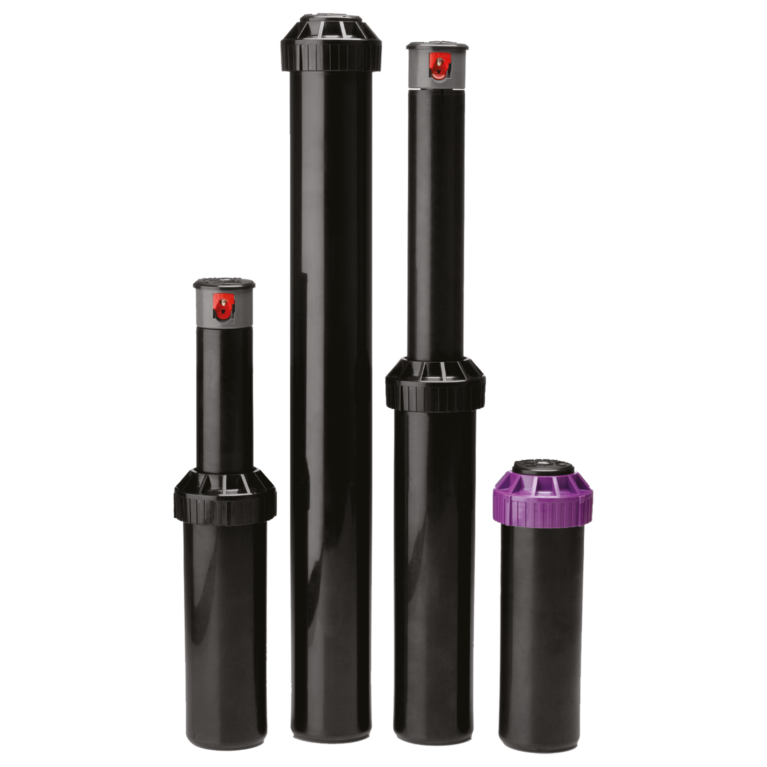

CodeModelDescription
SK13003MINIPRO 4″Rotor Sprinkler
SK13006MINIPRO 6″Rotor Sprinkler
SK13012MINIPRO 12″Rotor Sprinkler
