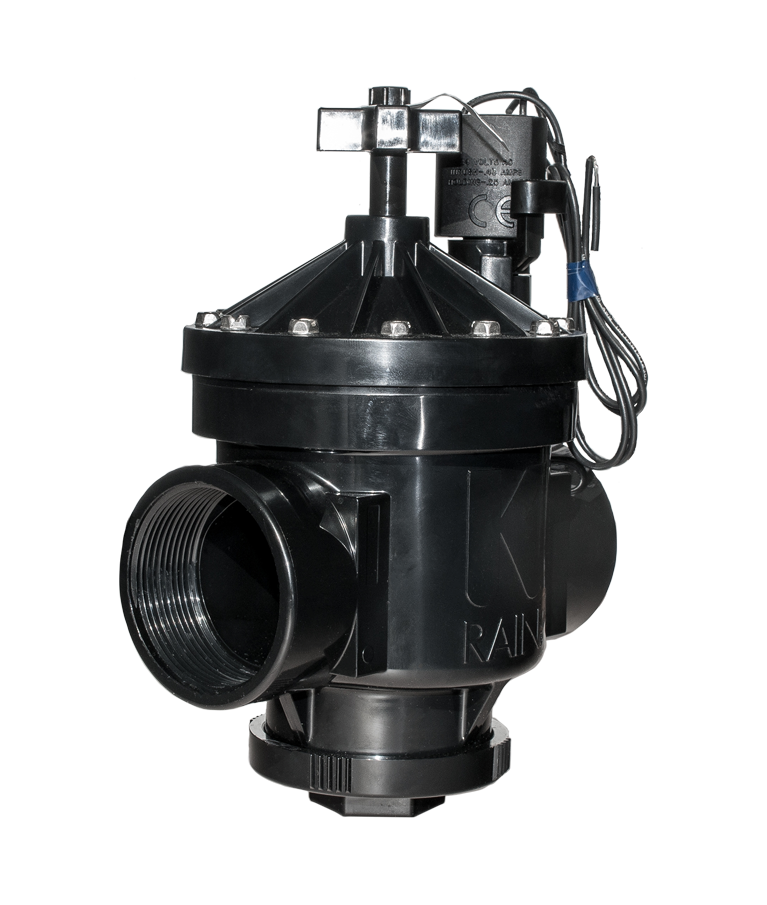

Pro Series 150 Valve 50mm

K-Rain’s ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. The K-Rain range of solenoid valves is made from high-quality UV resistant PVC construction and suitable for residential, agricultural and commercial applications. Working pressure 0.7bar (70kpa) to 10bar (1000kpa). High-quality coil design 24VAC. The 1″ valve has a removable metering pin and external bleed screw, promoting easy maintenance and manual operation. The 1.5” and 2” models feature a removable inlet cap to easily modify the configuration from globe to angle style. They also have a removable metering pin and external bleed screw promoting easy maintenance and manual operation.

  • Heavy Duty, Corrosion and UV Resistant PVC Construction – Increases the life of the valve
  • External Bleed Screw with Removable Metering Pin – Allows for easy cleaning of the metering pin without disassembling the valve
  • Manual External Bleed Screw – Provides for manual operation in system start up
  • Manual Internal Bleed through Solenoid – Provides for manual operation without discharging water outside the valve
  • Captured Plunger – Allows for the solenoid to be removed without losing the internal plunger

Range

CodeSizeDescriptionQuantity
KR700125mmSolenoid Valve with F/C1
KR7001J25mmPro Series 150 Valve with Jar Top1
KR710125mmPro Series 150 Valve1
KR711540mmPro Series 150 Valve1
KR710250mmPro Series 150 Valve1
KR7001TP25mmSolenoid Valve with F/C Bulk12
KR7001JTP25mmPro Series 150 Valve with Jar Top Bulk12
KR7101TP25mmPro Series 150 Valve Bulk12
KR7115TP40mmPro Series 150 Valve Bulk6
KR7102TP50mmPro Series 150 Valve Bulk6
