Performance Data
Performance Data
Download Rotary Nozzle Performance Data

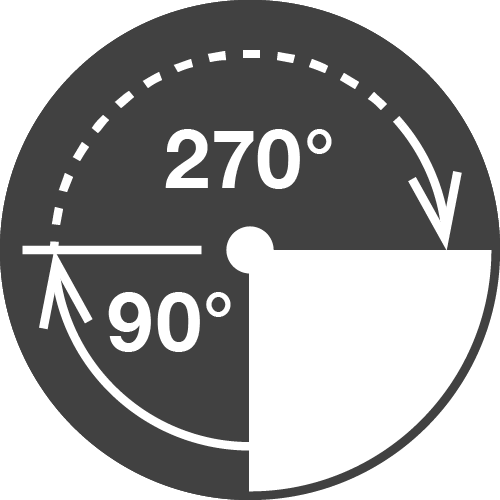

Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
---|---|---|---|---|
90° | 207 241 276 310 345 | 3.97 4.27 4.27 4.58 4.58 | 0.83 0.91 0.95 1.06 1.14 | 13 12 12 12 13 |
180° | 207 241 276 310 345 | 3.96 4.27 4.27 4.58 4.58 | 1.67 1.78 1.89 2.20 2.27 | 13 12 12 13 13 |
270° | 207 241 276 310 345 | 3.97 4.27 4.27 4.58 4.58 | 2.50 2.69 2.84 3.33 3.41 | 13 12 12 13 13 |
