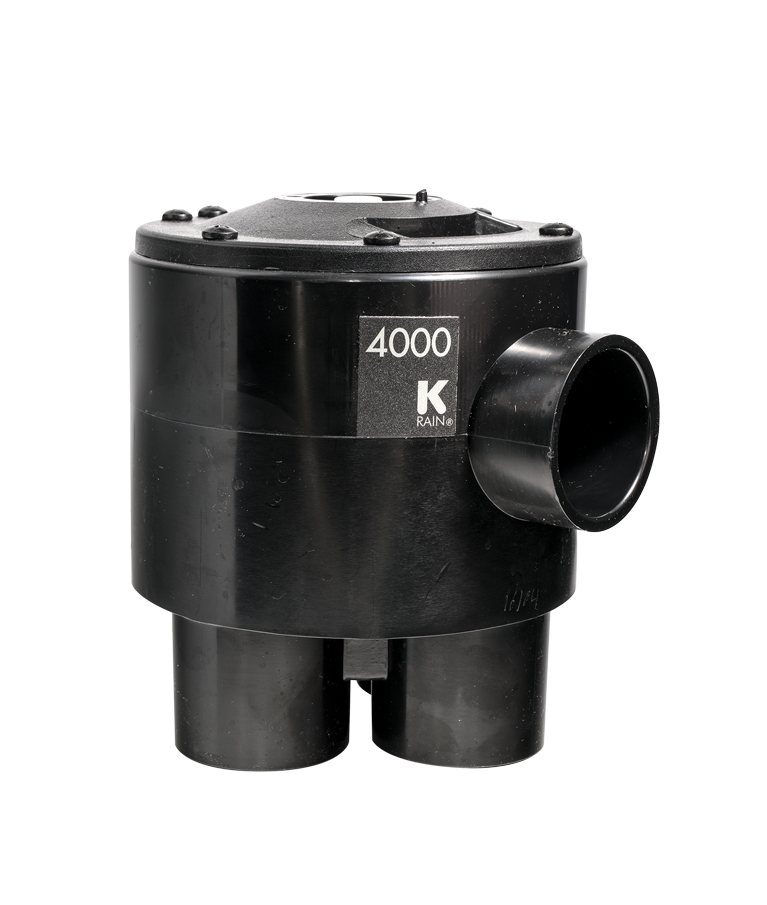

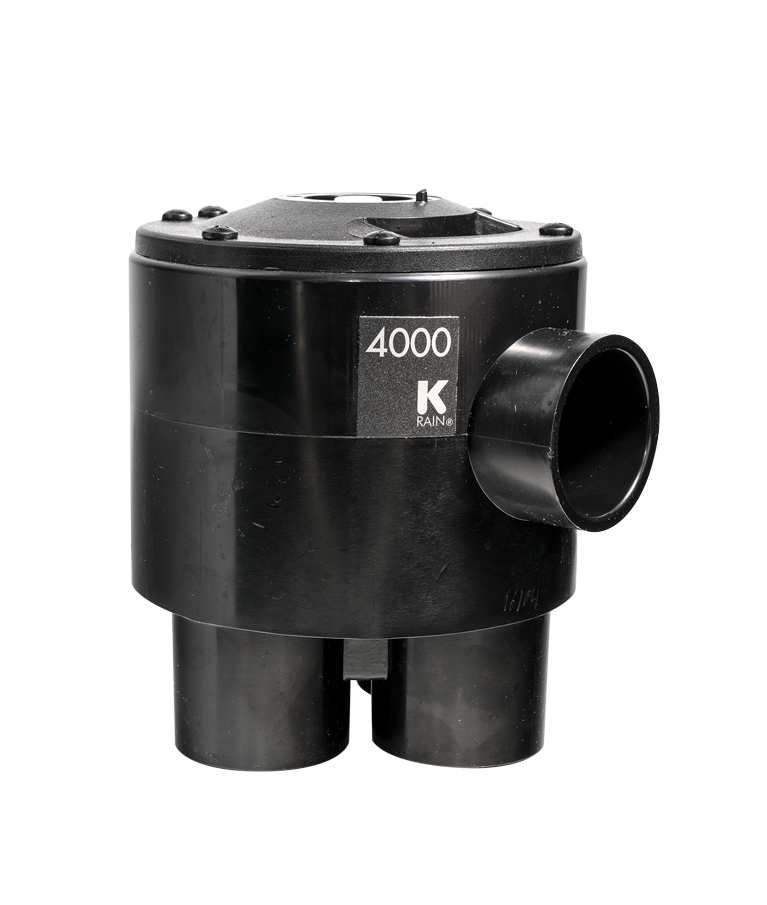

4000 Series 32mm Indexing Valve 4 Outlet

These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are ideally suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. The simplicity of design and few moving parts ensures ease of maintenance and long service life.

  • ABS Polymer Construction – High-strength, non-corrosive body for long product life.
  • Available in 4 and 6 Outlet Models – Can quickly and easily change from two to six watering zones.
  • Simplicity of Design – Valves are easily maintained and serviced for long product life.
  • Operates at Low (38 LPM) at Pressures of 170 – 520 kPa – Reliably automates multiple zoned residential and small commercial irrigation or wastewater systems.

SKUVK4400 Categories, Tags,
Close
SPECIFICATIONS

SPECIFICATIONS

MaterialABS Polymer Construction
Outlets4
CammedNo
UseReclaimed Water
Flow Rate38 – 152 l/pm
Pressure170 – 520 kPa
Inlet32mm (1 1/4″)
Outlet32mm (1 1/4″)
Close
GUIDES
Close
Reviews

Description

The 4000 offers a reliable, economical way to automate multiple zoned residential and small commercial irrigation systems. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. The valve is constructed of high strength, non-corrosive ABS polymer and is not cammed.

Product Details

  • Inlet: 32mm (1 1/4″)
  • Outlet: 32mm (1 1/4″)
  • Pressure Rating: 25 – 75 PSI(170 – 520 kPa)
  • Flow Range: 37.9 – 151.5 L/pm
CodeModelDescription
KR44004000 Series 32mm4 Outlet
KR4400RCW4000 Series 32mm4 Outlet RCW
KR44024000 Series 32mm4 Outlet / 2 Zone
KR4402RCW4000 Series 32mm4 Outlet / 2 Zone RCW
KR44034000 Series 32mm4 Outlet / 3 Zone RCW
KR4403RCW4000 Series 32mm4 Outlet / 3 Zone RCW
KR44044000 Series 32mm4 Outlet / 4 Zone
KR4404RCW4000 Series 32mm4 Outlet / 4 Zone RCW
