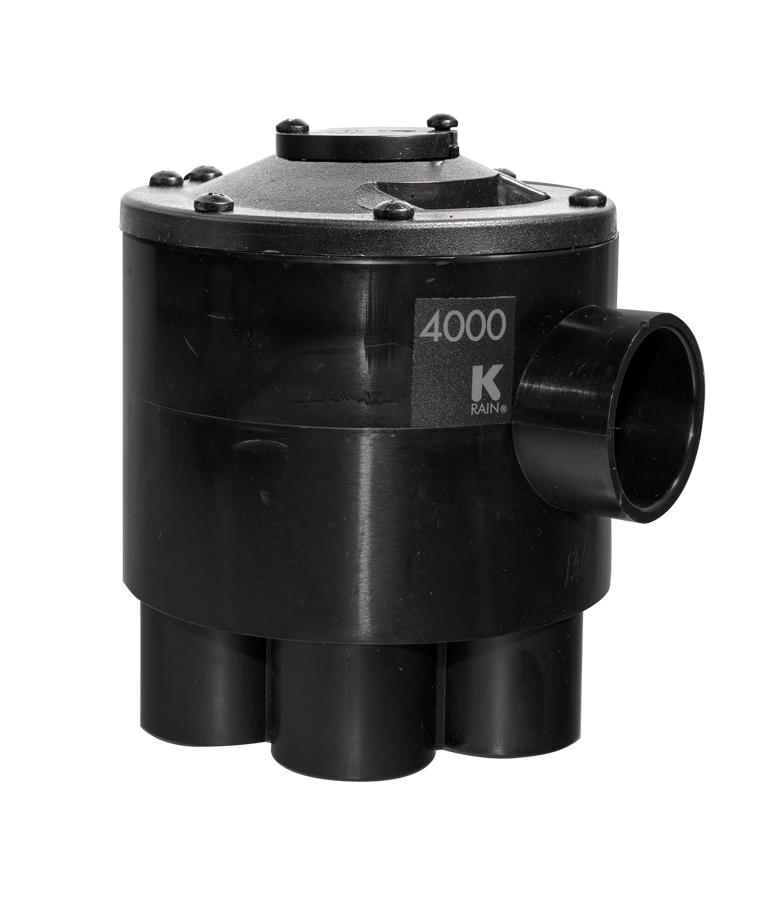

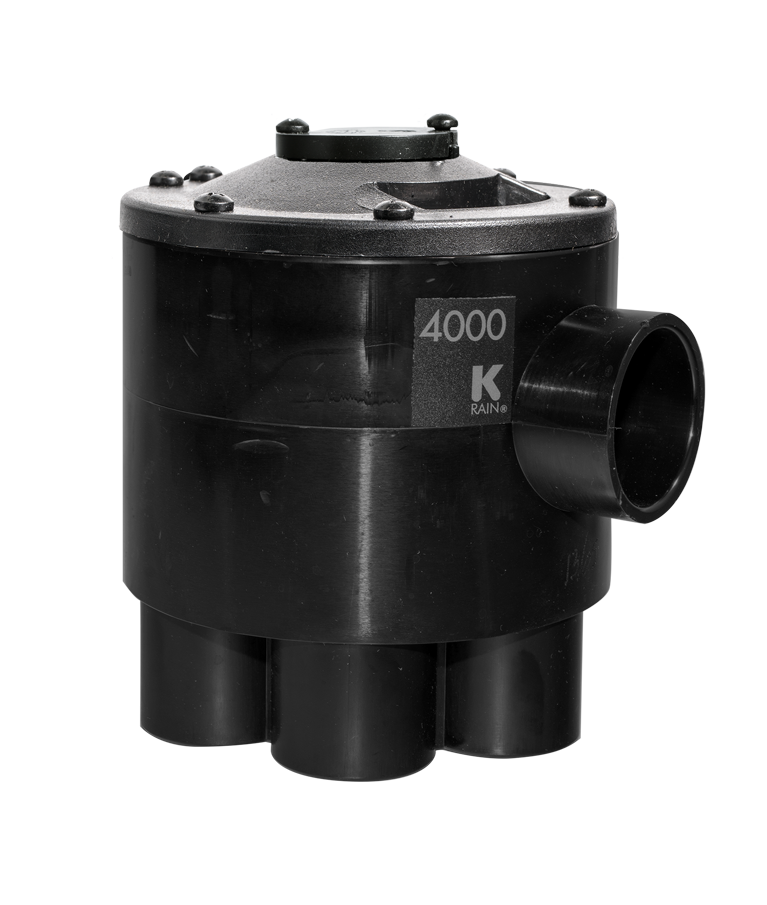

4000 Series 32mm Indexing Valve 4 Zone / 6 Outlet

This valve is constructed of high strength, non-corrosive ABS polymer and is cammed for 4 Zone Operation. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are ideally suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. The simplicity of design and few moving parts ensures ease of maintenance and long service life.

  • ABS Polymer Construction – High-strength, non-corrosive body for long product life.
  • Simplicity of Design – Valves are easily maintained and serviced for long product life.
  • Operates at Low (38 LPM) at Pressures of 170 – 520 kPa – Reliably automates multiple zoned residential and small commercial irrigation or wastewater systems.
  • 6 Outlets

SKUVK4604 Category
Close
SPECIFICATIONS

SPECIFICATIONS

MaterialABS Polymer Construction
Outlets6
Cammed4 Zone
UseWater
Flow Rate38 – 95 l/pm
Pressure170 – 520 kPa
Inlet32mm (1 1/4″)
Outlet25mm (1″)
Close
GUIDES
Close
Reviews

Description

The 4000 offers a reliable, economical way to automate multiple zoned residential and small commercial irrigation systems. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. This valve is constructed of high strength, non-corrosive ABS polymer and is cammed for 4 Zone Operation.

Product Details

  • Inlet: 32mm (1 1/4″)
  • Outlet: 25mm SLIP
  • Pressure Rating: 25 – 75 PSI(170 – 520 kPa)
  • Flow Range: 38 – 95 L/pm
CodeModelDescription
KR46004000 Series 32mm6 Outlet
KR4600RCW4000 Series 32mm6 Outlet RCW
KR4602RCW4000 Series 32mm6 Outlet / 2 Zone RCW
KR4603RCW4000 Series 32mm6 Outlet / 3 Zone RCW
KR46044000 Series 32mm6 Outlet / 4 Zone
KR4604RCW4000 Series 32mm6 Outlet / 4 Zone RCW
KR46054000 Series 32mm6 Outlet / 5 Zone
KR4605RCW4000 Series 32mm6 Outlet / 5 Zone RCW
KR46064000 Series 32mm6 Outlet / 6 Zone
KR4606RCW4000 Series 32mm6 Outlet / 6 Zone RCW
