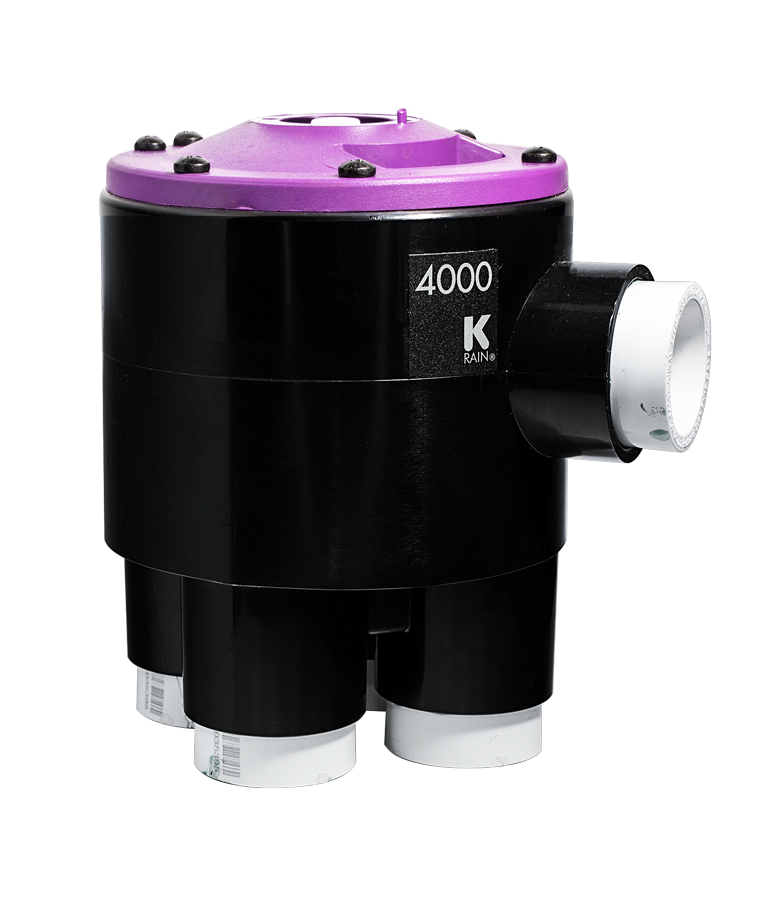

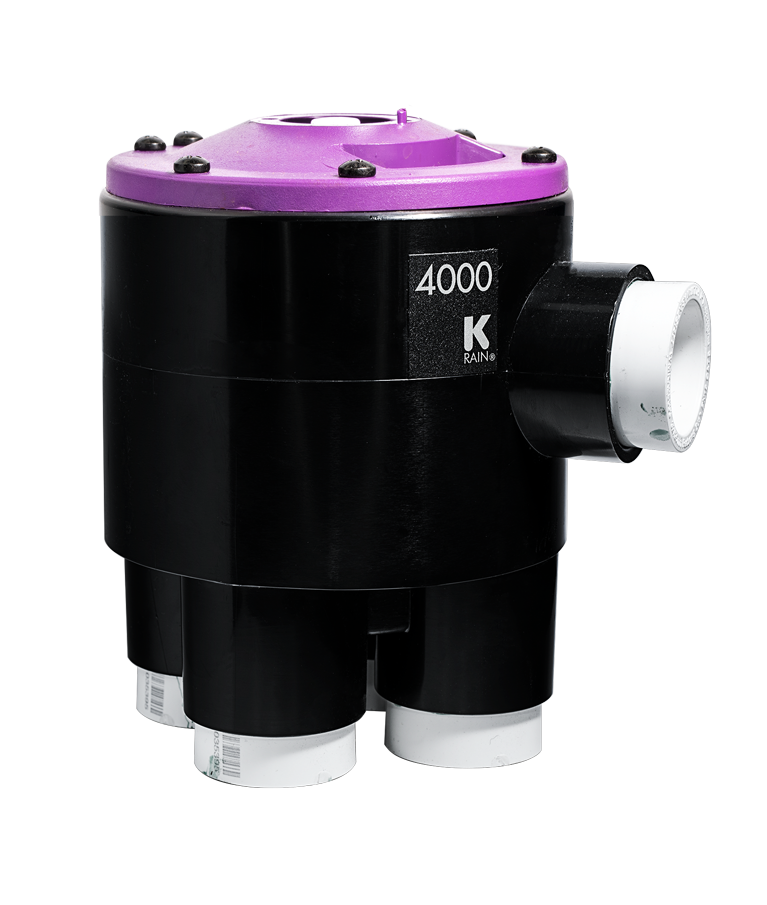

4000 Series 25mm Indexing Valve 4 Outlet (RCW)

This valve is constructed of high strength, non-corrosive ABS polymer and is not cammed. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are ideally suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. The simplicity of design and few moving parts ensures ease of maintenance and long service life.

  • ABS Polymer Construction – High-strength, non-corrosive body for long product life.
  • Simplicity of Design – Valves are easily maintained and serviced for long product life.
  • Operates at Low (40 LPM) at Pressures of 170 – 520 kPa – Reliably automates multiple zoned residential and small commercial irrigation or wastewater systems.
  • Reclaimed Water Use

SKUVK4410RCW Category
Close
SPECIFICATIONS

SPECIFICATIONS

MaterialABS Polymer Construction
Outlets4
CammedNo
UseReclaimed Water
Flow Rate40 – 100 l/pm
Pressure170 – 520 kPa
Inlet25mm (1″)
Outlet25mm (1″)
Close
GUIDES
Close
Reviews

Description

The 4000 offers a reliable, economical way to automate multiple zoned residential and small commercial irrigation systems. These patented indexing valves allow for the number of watering zones to be changed quickly and easily. They are suited for both city water and pump applications and may also be used for onsite wastewater or effluent water applications. This valve is constructed of high strength, non-corrosive ABS polymer and is not cammed.

Product Details

  • Inlet: 25mm SLIP
  • Outlet: 25mm SLIP
  • Pressure Rating: 25 – 75 PSI(170 – 520 kPa)
  • Flow Range: 40 – 100 L/pm
CodeModelDescription
KR44104000 Series 25mm4 Outlet
KR4410RCW4000 Series 25mm4 Outlet RCW
KR44124000 Series 25mm4 Outlet / 2 Zone
KR4412RCW4000 Series 25mm4 Outlet / 2 Zone RCW
KR44134000 Series 25mm4 Outlet / 3 Zone
KR4413RCW4000 Series 25mm4 Outlet / 3 Zone RCW
KR44144000 Series 25mm4 Outlet / 4 Zone
KR4414RCW4000 Series 25mm4 Outlet / 4 Zone RCW
