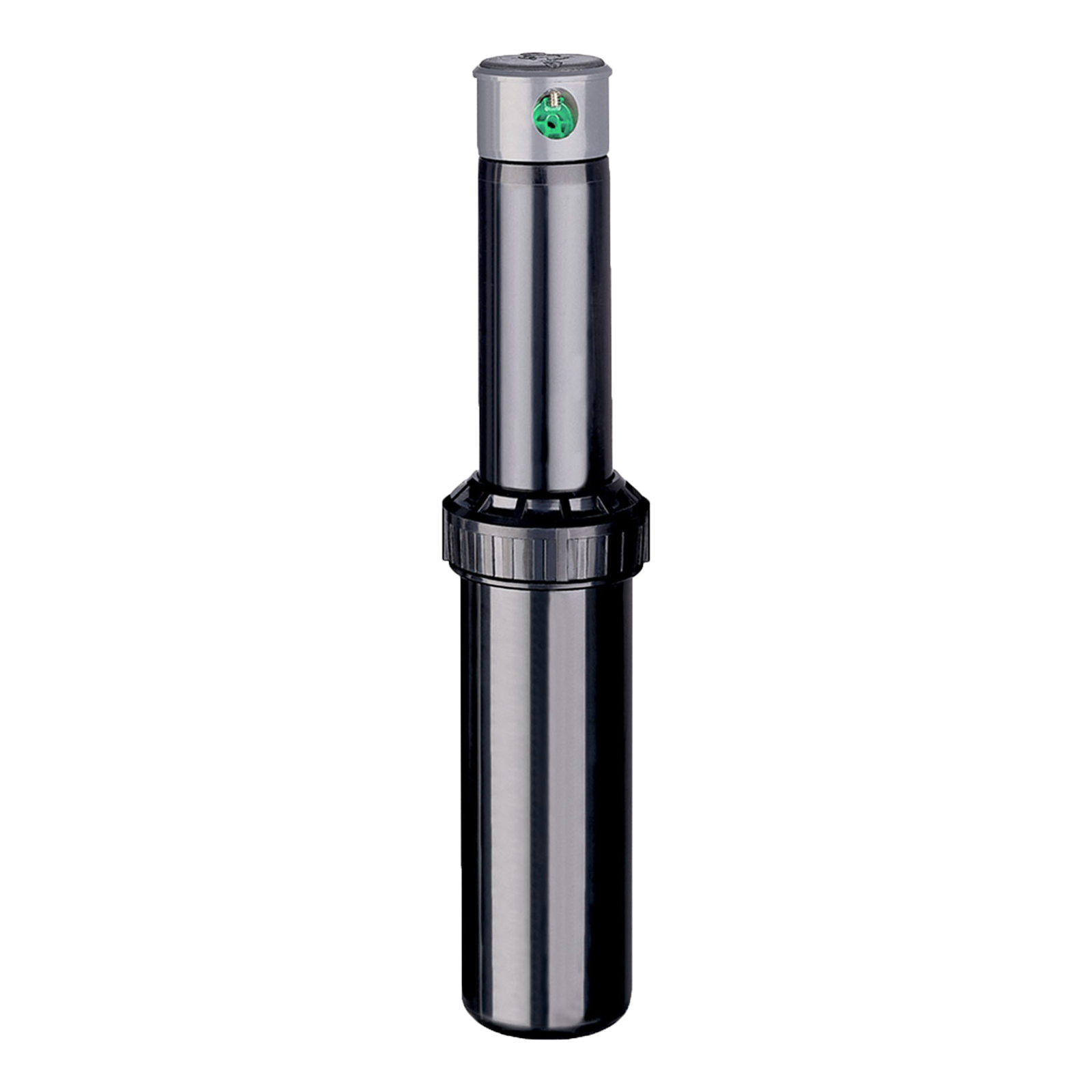

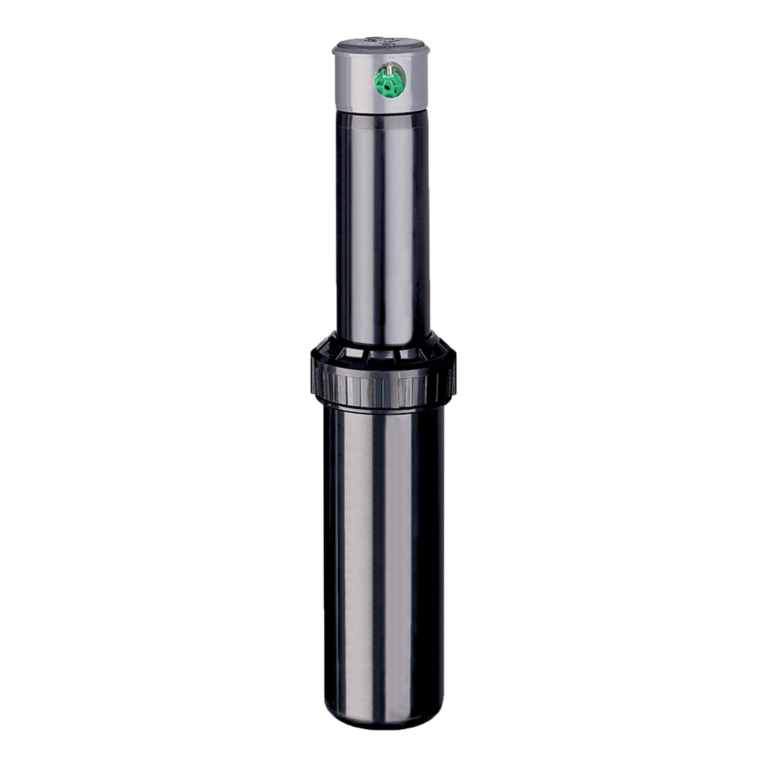

SuperPro Gear Drive Sprinkler

    Patented Flow Shut-Off – Provides Intelligent Flow Technology® allowing distance and water flow to be reduced simultaneously and proportionately. Dry, easy and accurate distance control without the need to change nozzles or employ a break-up screw. Experience water savings of up to 30% or more!

    • Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds
    • 2N1 Adjustable or Continuous Rotation – Provides a full range of adjustment from 40° to a continuous 360°
    • Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
    • Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced out of adjustment
    • Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35 year history.

    Download SuperPro Brochure Download SuperPro Instructions

    Download SuperPro Installation Download SuperPro Specifications

    SKU: SK10003 Category: Tags: , ,

    Description

    The SuperPro Rotor, with its patented flow shut-off, allows for easy range and flow adjustment and renders installations easier and drier. With a simple adjustment, you can shut off water flow at the head OR easily modify both flow and distance proportionally without changing nozzles.

    SuperPro has a patented Arc Memory Clutch that returns the rotor to its pre-set position. Designed for medium to large landscape areas, the adjustable arc and full-circle gear driven rotor comes standard with 13 numerically coded, interchangeable nozzles (8 Standard Nozzles, 4 Low Angle Nozzles and 1 Pre-Installed 2.5 Nozzle).

    The SuperPro is packed with features that ensure reliability, saving the installer time, money and needless frustration.



    about-video-decor





    Features

    • Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.
    • Rubber Cover – Seals out dirt and increases product durability.
    • Optional Check Valve – Prevents low head drainage.
    • Rugged Stainless Steel Spring – .093 gauge 302 stainless steel spring extends the life of the rotor.
    • Inlet: 3/4″ (1,9 cm) Threaded NPT
    • Arc Adjustment Range: 40° to Continuous 360°
    • Flow Range: .5 – 9.5 GPM (1,9 – 36 LPM)
    • Pressure Rating: 20 – 70 PSI (1,4 – 4,8 bar)
    • Precipitation Rate: .21 – 1.17 in/hr (5,39 a 30,89 mm/hr) (Depending on Spacing and Nozzle Used)
    • Overall Height (Popped Down): 7 1/2″ (19 cm)
    • Recommended Spacing: 28′ – 44′ (8,5 a 13,4 m)
    • Radius: 26′ – 49′ (7,9 a 14,9 m)
    • Nozzle Trajectory: 26°
    • Low Angle Nozzle Trajectory: 12°
    • Standard and Low Angle Nozzles Included
    • Riser Height: 4″ (10,2 cm)
