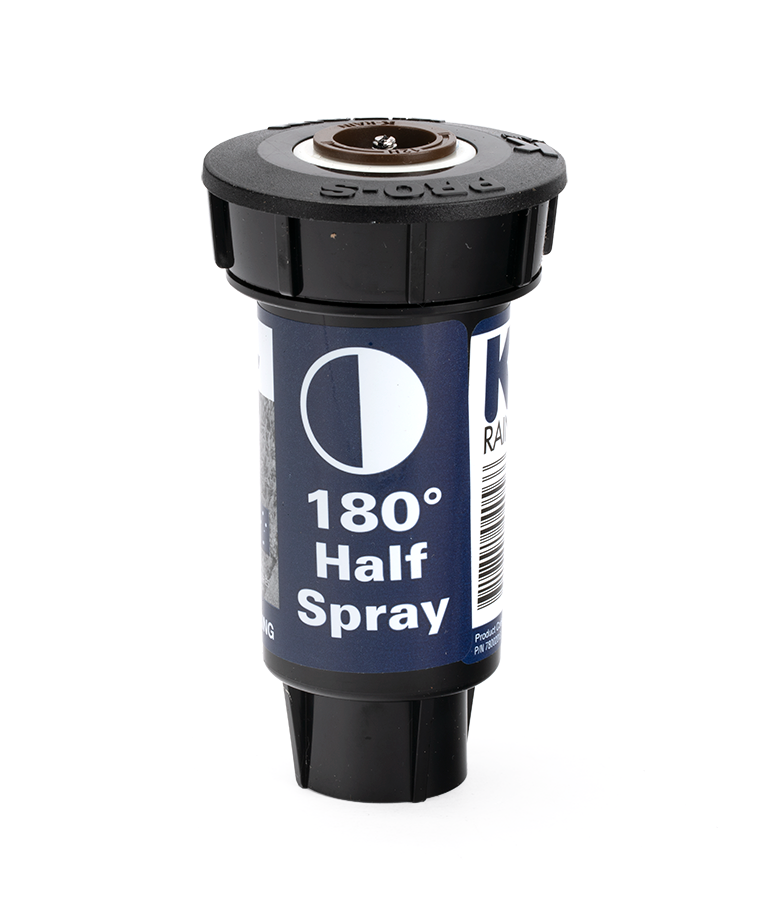

50mm PRO-S Pop Up Sprinkler – 180° Spray Nozzle

    The K-Rain PRO-S is a tough and robust pop-up sprinkler that ideally suits the contractor. This commercial quality pop up sprinkler is designed to provide a long life and outstanding performance. Available in 360°, 270°, 180° and 90° coverage.

    • 50mm Pop-up Sprinkler
    • 180° Half Spray Pattern
    • 3.6m Radius
    • Co-Molded Wiper Seal-Ensures a leak-free, full pop up operation, even under low-pressure situations
    • Cartridge design allows for easy removal and cleaning
    • Accepts all Female Threaded Nozzles

    Download PRO-S Brochure Download PRO-S Installation

    Download PRO-S Specifications

    Description

    Flushing Cap: When an irrigation system is built, it often has a build up of dirt & debris in the system, before it is turned on. The PRO-S is equipped with a flushing cap (blue) which allows the system to be turned on & purged, cleaning out any dirt & debris. The flushing cap also allows a system to be tested first, before any nozzles are fitted. The PRO-S riser stem features an industry standard male thread, this accepts ALL brands of female threaded nozzles.

    Microbe Resistant Seal: Soils contain many types of microbes. Over time, these microbes eat away & deteriorate rubber seals, causing leaking & broken sprinklers. The PRO-S range of pop up sprinklers have a “Microbe Resistant Seal”. The polymer used to make the seal prevent the microbes from attacking the seal, increasing the life span of the sprinkler by making this seal last longer! K-Rain provides a factory-supported warranty for up to 5 years.

    Ratcheting Riser: The ratcheting riser in the PRO-S is a great feature! It allows the spray pattern to be easily adjusted into position. The ratchet at the base of the riser stem allows you to “re-orientate” the spray pattern to cover the correct area in the garden or lawn, once the nozzle has been fitted.

    Heavy Duty Retraction Spring: Using a high quality spring, the PRO-S is guaranteed to retract fully every time! This protects your nozzle and prevents any damage to the sprinkler itself, keeping your system fully operational and reliable.

    Features

    • Pressure rating – 20 to 70 PSI
    • Flow by – 0 at 8 PSI (0.6 bar) or greater; 0.10 GPM otherwise
    • Precipitation rate – .4 to 4 in/hr
    • Inlet – ½” NPT Female Thread
    • Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups
    • Ratcheting Riser-Permits quick, easy alignment of spray pattern
    • Heavy-Duty Retraction Spring-Strongest spring in the industry for positive retraction in all soil conditions
    • Side and Bottom inlets on 6” and 12” models.
    • Optional In-Stem Pressure Regulator available for 4”, 6” and 12” models.
    •

    CodeSizeSpray
    KR780250mm Pop-Up SprinklerFlush Cap
    KR780380mm Pop-Up SprinklerFlush Cap
    KR7804100mm Pop-Up SprinklerFlush Cap
    KR781250mm Pop-Up SprinklerAdjustable 360º Spray
    KR781380mm Pop-Up SprinklerAdjustable 360º Spray
    KR7814100mm Pop-Up SprinklerAdjustable 360º Spray
    KR782150mm Pop-Up Sprinkler90º Quarter Spray
    KR782250mm Pop-Up SprinklerTuff Top Adjustable 360º Spray
    KR782350mm Pop-Up Sprinkler180º Half Spray
    KR782450mm Pop-Up Sprinkler360º Full Spray
    Size

    50mm

    Spray Pattern

    Half Spray
