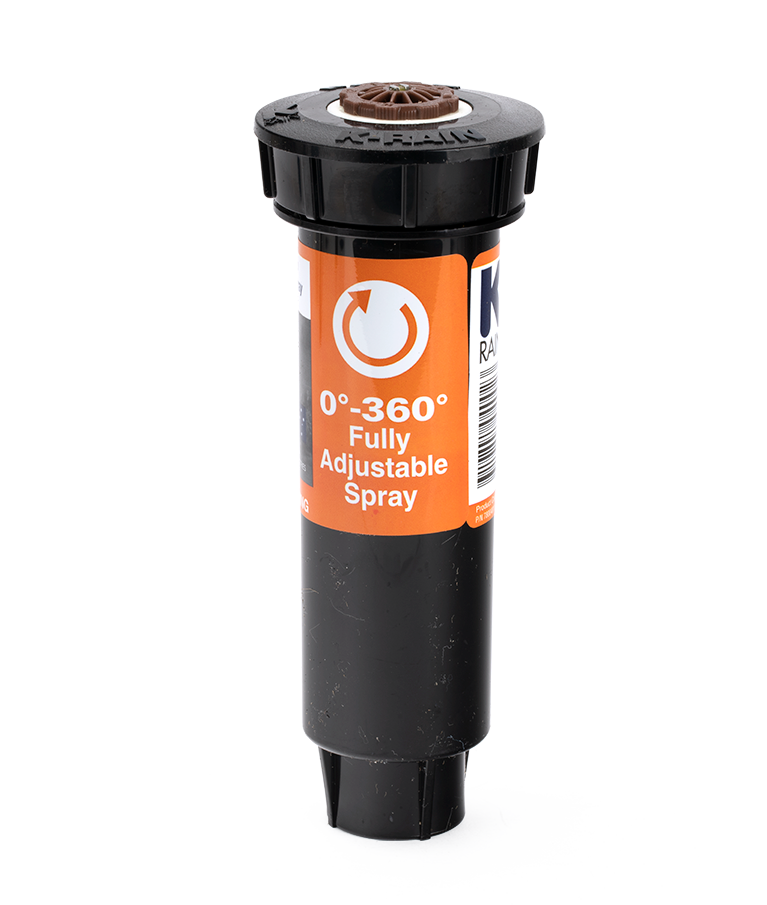

100mm PRO-S Pop Up Sprinkler – Spray Nozzle

The K-Rain PRO-S is a tough and robust pop-up sprinkler that ideally suits the contractor. This commercial quality pop up sprinkler includes an adjustable nozzle with 0° to 360° coverage.

  • 100mm Pop-up Sprinkler
  • 3.6m Radius
  • Heavy duty retraction spring – for all soil conditions
  • Ratcheting riser – for easy arc adjustment
  • Co-Molded Wiper Seal-Ensures a leak-free, full pop up operation, even under low-pressure situations
  • Cartridge design allows for easy removal and cleaning
  • Accepts all Female Threaded Nozzles

SKUKR7814 Category
Close
Specifications

Specifications

Download PRO-S Specifications

  • Pressure rating: 137 to 480kPa
  • Flow rate: 0-10L/min
  • 3.6m throw radius
  • 0º-360º adjustable spray pattern
Close
Instructions
Close
Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

  • Pressure rating: 137 to 480kPa
  • Flow rate: 0-10L/min
  • 3.6m throw radius
  • 0º-360º adjustable spray pattern
  • Treated with UV inhibitors for long life. The seal is microbe resistant to reduce degradation and stick-ups
  • Ratcheting Riser-Permits quick, easy alignment of the spray pattern
  • Heavy-Duty Retraction Spring-Strongest spring in the industry for positive retraction in all soil conditions
  • Optional In-Stem Pressure Regulator available for 100mm

Usage

Flushing Cap: When an irrigation system is built, it often has a build-up of dirt & debris in the system, before it is turned on. The PRO-S is equipped with a flushing cap (blue) which allows the system to be turned on & purged, cleaning out any dirt & debris. The flushing cap also allows a system to be tested first before any nozzles are fitted. The PRO-S riser stem features an industry-standard male thread, this accepts ALL brands of female threaded nozzles.

Microbe Resistant Seal: Soils contain many types of microbes. Over time, these microbes eat away & deteriorate rubber seals, causing leaking & broken sprinklers. The PRO-S range of pop up sprinklers has a “Microbe Resistant Seal”. The polymer used to make the seal prevent the microbes from attacking the seal, increasing the life span of the sprinkler by making this seal last longer! K-Rain provides a factory-supported warranty for up to 5 years.

Ratcheting Riser: The ratcheting riser in the PRO-S is a great feature! It allows the spray pattern to be easily adjusted into position. The ratchet at the base of the riser stem allows you to “re-orientate” the spray pattern to cover the correct area in the garden or lawn, once the nozzle has been fitted.

Heavy Duty Retraction Spring: Using a high-quality spring, the PRO-S is guaranteed to retract fully every time! This protects your nozzle and prevents any damage to the sprinkler itself, keeping your system fully operational and reliable.

Range

CodeSizeSprayQuantity
KR780250mm Pop-Up SprinklerFlush Cap1
KR780380mm Pop-Up SprinklerFlush Cap1
KR7804100mm Pop-Up SprinklerFlush Cap1
KR781250mm Pop-Up SprinklerAdjustable 360º Spray1
KR781380mm Pop-Up SprinklerAdjustable 360º Spray1
KR7814100mm Pop-Up SprinklerAdjustable 360º Spray1
KR782150mm Pop-Up Sprinkler90º Quarter Spray1
KR782250mm Pop-Up SprinklerTuff Top Adjustable 360º Spray1
KR782350mm Pop-Up Sprinkler180º Half Spray1
KR782450mm Pop-Up Sprinkler360º Full Spray1
KR7802TP50mm Pop-Up Sprinkler BulkFlush Cap79
KR7803TP80mm Pop-Up Sprinkler BulkFlush Cap60
KR7804TP100mm Pop-Up Sprinkler BulkFlush Cap57
KR7812TP50mm Pop-Up Sprinkler BulkAdjustable 360º Spray90
KR7813TP80mm Pop-Up Sprinkler BulkAdjustable 360º Spray60
KR7814TP100mm Pop-Up Sprinkler BulkAdjustable 360º Spray57
KR7821TP50mm Pop-Up Sprinkler Bulk90º Quarter Spray90
KR7823TP50mm Pop-Up Sprinkler Bulk180º Half Spray90
KR7824TP50mm Pop-Up Sprinkler Bulk360º Full Spray90
