Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 133 × 76 × 100 cm |
| Pack Quantity | 12 Pack |

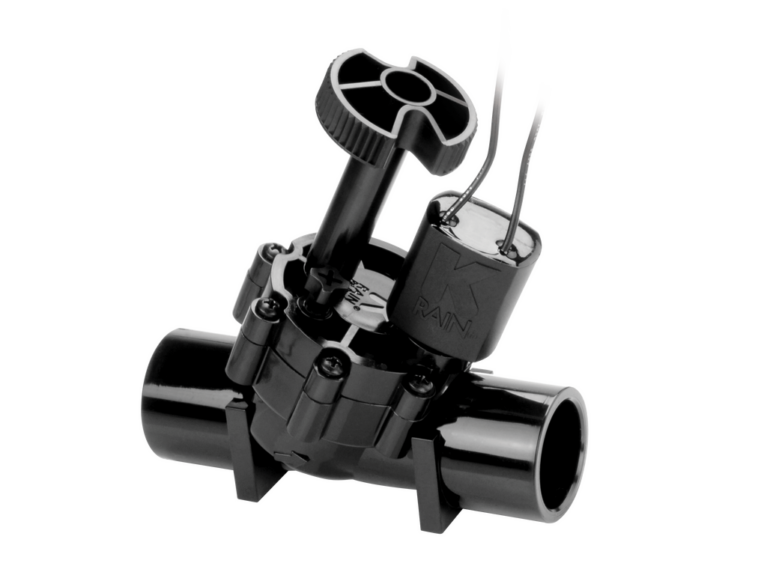

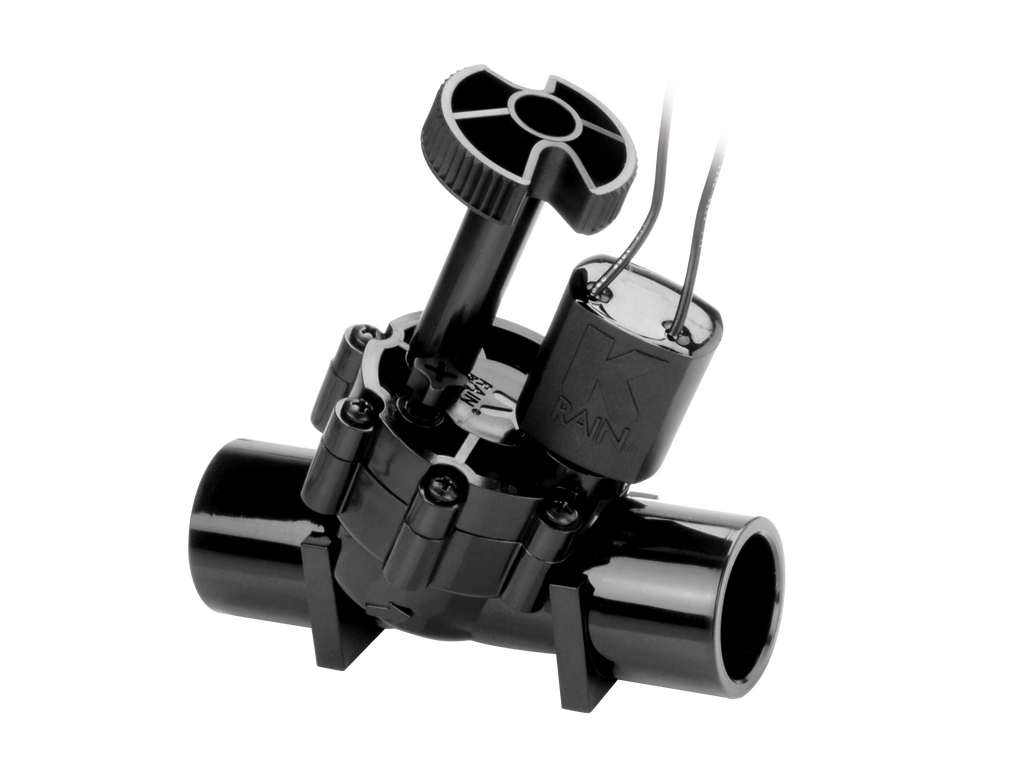

Pro Series 100 Approved Master Valve 25mm Solenoid – Bulk Pack

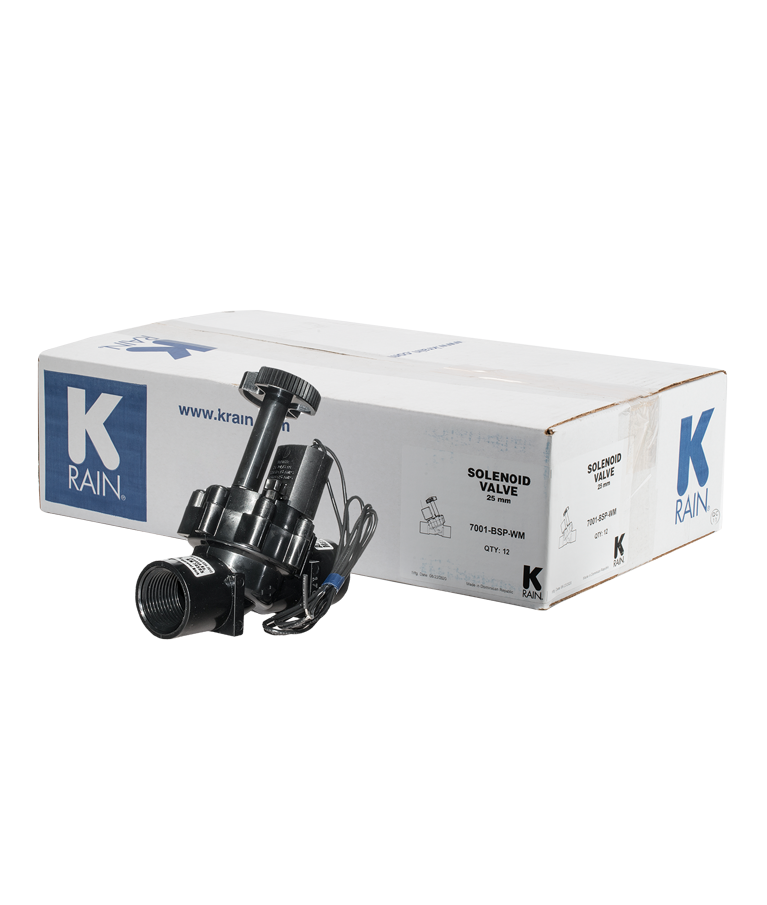

PACK OF 12
The K-Rain range of solenoid valves is made from high-quality UV resistant PVC construction and suitable for residential, agricultural and commercial applications. Working pressure 140 to 1030kPa. High-quality coil design 24VAC.
- Approved Master Valve ATS 5200.030 License No. WM 74565

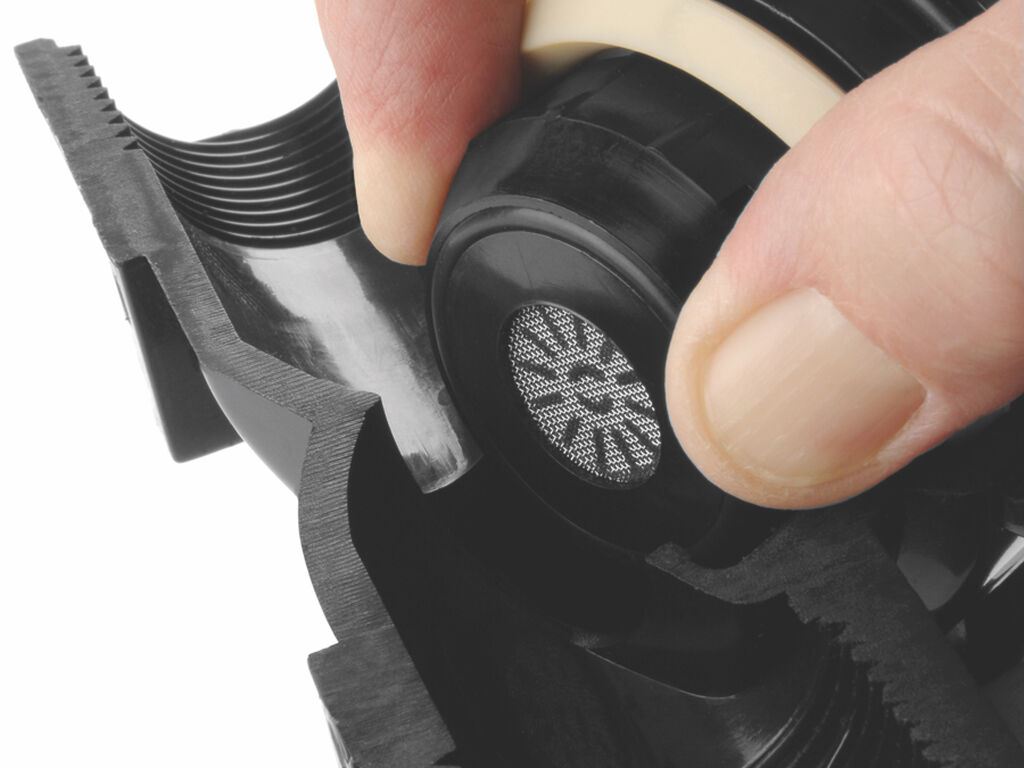

- Self-cleaning screen with straight flow-through pattern
- Internal and external bleed in additional to optional flow control

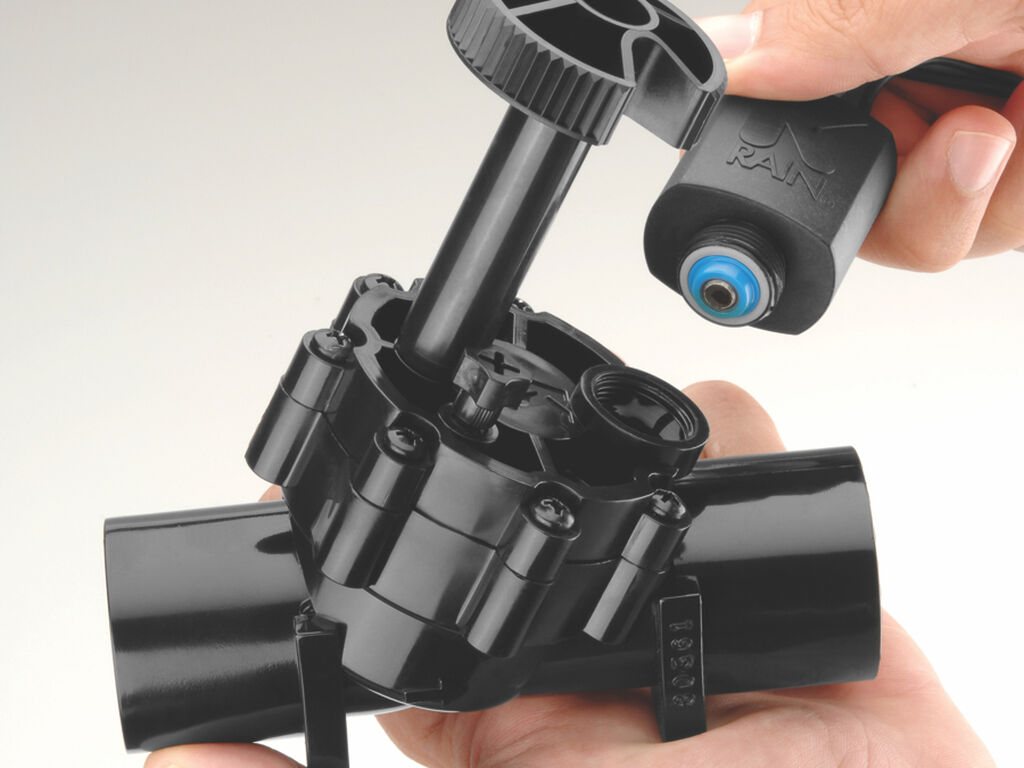

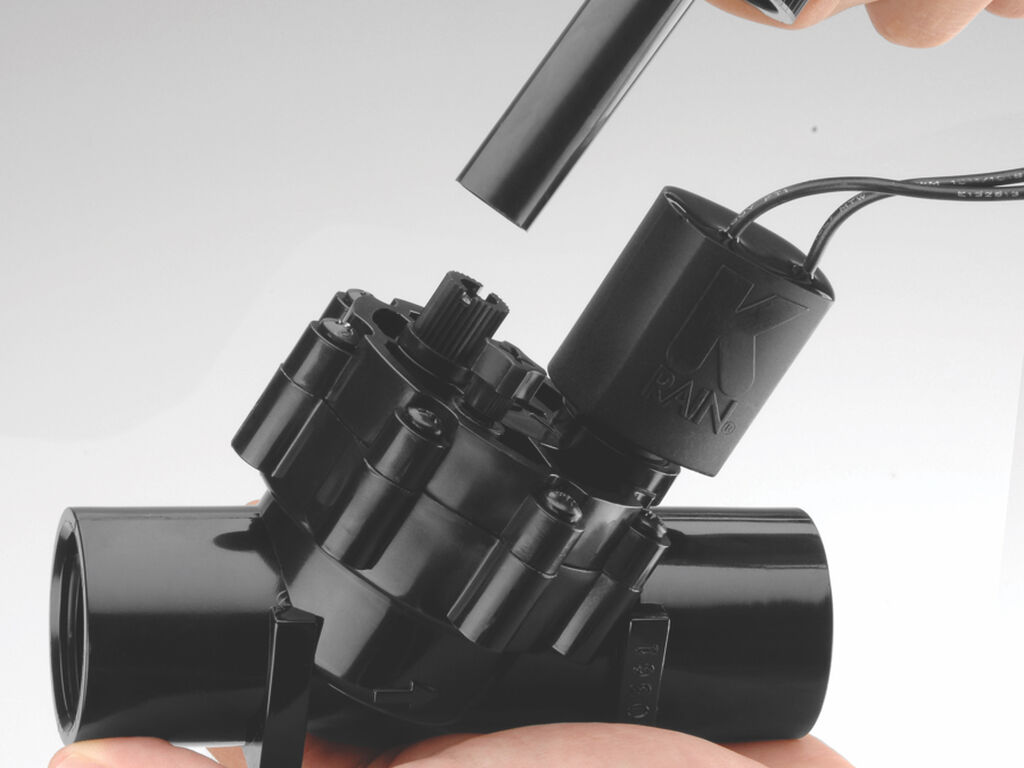

- Captured Plunger Solenoid
- Manufactured from heavy duty, corrosion and UV resistant PVC

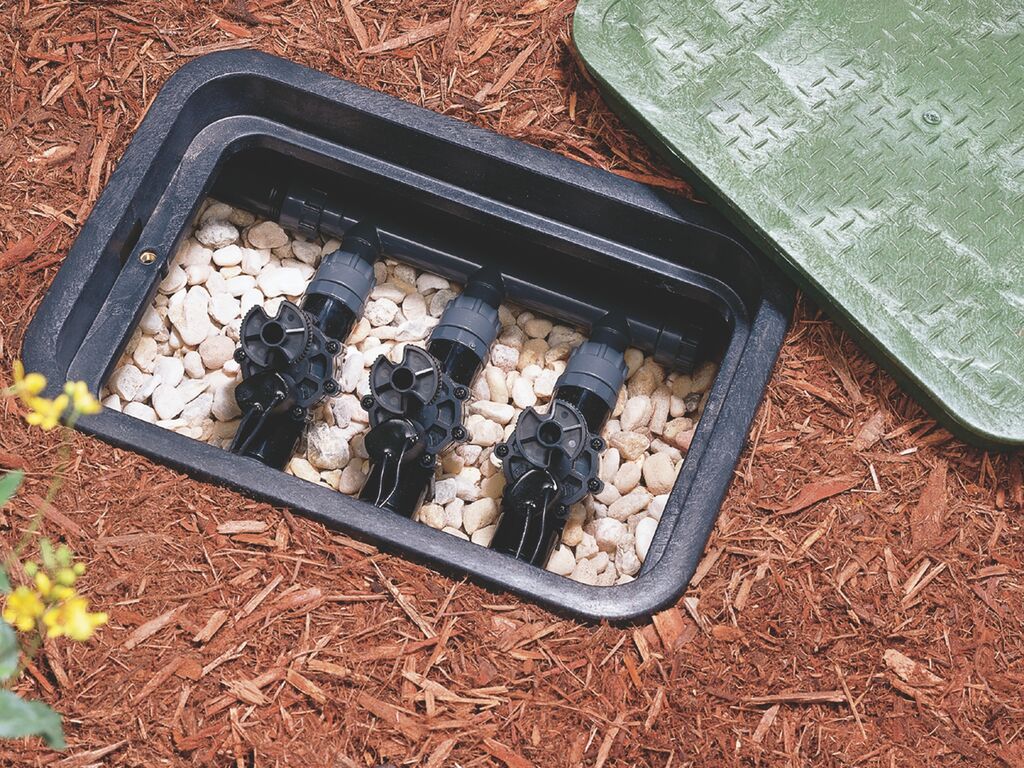

- Suitable for residential and commercial applications
- Tilt design allows for straight flow path
- Flow range 19-114L/min
- Debris tolerant design. Ideal for use with dirty water applications
| Pack Quantity: 12 Pack |
Add to WishlistRemove from Wishlist
Add to Wishlist
Tech Sheet
Tech Sheet
Manual
Manual
*Please note spare parts shown in diagram may not be available for individual sale in Australia
Videos
Videos
Reviews
Operating Specifications
- Pressure Rating – 138 – 1035 kPa
- Pressure Loss @ 114L/min = 35 kPa
- Flow Range – 19 – 114L/min
Dimensions
- Height: 100mm Width: 76mm Length: 133mm
Electrical Specifications
- Solenoid – 24 VAC 60 Hz Cycle
- Inrush Current – 0.43 Amps
- Holding Current – 0.25 Amps
Range
| Code | Size | Description | Quantity |
|---|---|---|---|
| KR7001 | 25mm | Solenoid Valve with F/C | 1 |
| KR7101J | 25mm | Pro Series 150 Valve with Jar Top | 1 |
| KR7101 | 25mm | Pro Series 150 Valve | 1 |
| KR7115 | 40mm | Pro Series 150 Valve | 1 |
| KR7102 | 50mm | Pro Series 150 Valve | 1 |
| KR7001TP | 25mm | Solenoid Valve with F/C Bulk | 12 |
| KR7101JTP | 25mm | Pro Series 150 Valve with Jar Top Bulk | 12 |
| KR7101TP | 25mm | Pro Series 150 Valve Bulk | 12 |
| KR7115TP | 40mm | Pro Series 150 Valve Bulk | 6 |
| KR7102TP | 50mm | Pro Series 150 Valve Bulk | 6 |
