Additional information
| Thread | Female |
|---|

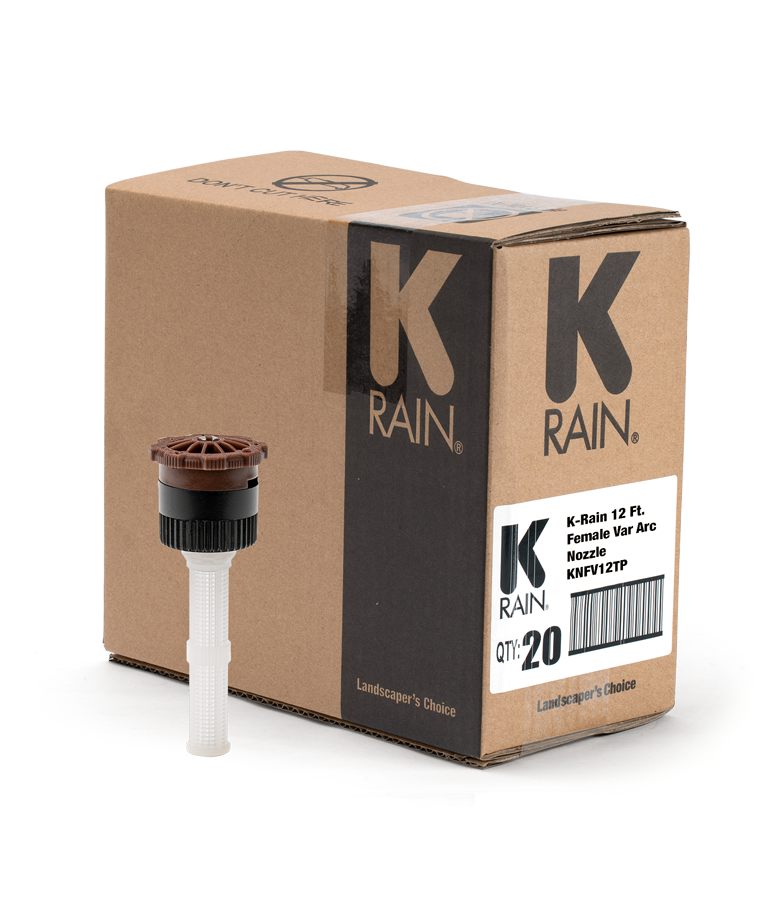

Adjustable Spray Nozzle 12′ 3.6m Female – Bulk Pack
PACK OF 20
Spray nozzles are important, but often an overlooked component of a well-designed irrigation system. The proper nozzle ensures accurate, even delivery of water in the pattern you need. Adjustable Nozzles have a superior spray pattern that ensures proper precipitation rates throughout the adjustment. Extra long filters provide longer time between cleanings.
- Adjustable spray pattern from 0° to 360°
- 3.6m Radius
- Female Thread
- Match precipitation – across various radii and patterns
Add to WishlistRemove from Wishlist
Add to Wishlist
Performance Data
Performance Data
Download Full Performance Data
| Arc | Pressure (kPa) | Radius (m) | Flow Rate (L/min) | Precip. (mm/hour) |
|---|---|---|---|---|
| 90° | 138 207 276 345 | 3.66 3.96 4.27 4.27 | 2.46 2.65 3.03 3,41 | 42 39 38 43 |
| 180° | 138 207 276 345 | 3.66 3.96 4.27 4.27 | 4.92 5.30 6.06 6.81 | 42 39 38 43 |
| 270° | 138 207 276 345 | 3.66 3.96 4.27 4.27 | 7.19 7.95 9.08 9.84 | 41 39 38 41 |
| 360° | 138 207 276 345 | 3.66 3.96 4.27 4.27 | 8.33 9.84 11.73 13.25 | 36 36 37 42 |
Reviews
Range
| Code | Description | Throw | Spray | Quantity |
|---|---|---|---|---|
| KNFV8 | 8′ Female Thread | 2.4m | 0-360° Adjustable Spray | 1 |
| KNFV10 | 10′ Female Thread | 3m | 0-360° Adjustable Spray | 1 |
| KNFV12 | 12′ Female Thread | 3.6m | 0-360° Adjustable Spray | 1 |
| KNFV15 | 15′ Female Thread | 4.5m | 0-360° Adjustable Spray | 1 |
| KNFV8TP | 8′ Female Thread Bulk | 2.4m | 0-360° Adjustable Spray | 20 |
| KNFV10TP | 10′ Female Thread Bulk | 3m | 0-360° Adjustable Spray | 20 |
| KNFV12TP | 12′ Female Thread Bulk | 3.6m | 0-360° Adjustable Spray | 20 |
| KNFV15TP | 15′ Female Thread Bulk | 4.5m | 0-360° Adjustable Spray | 20 |
