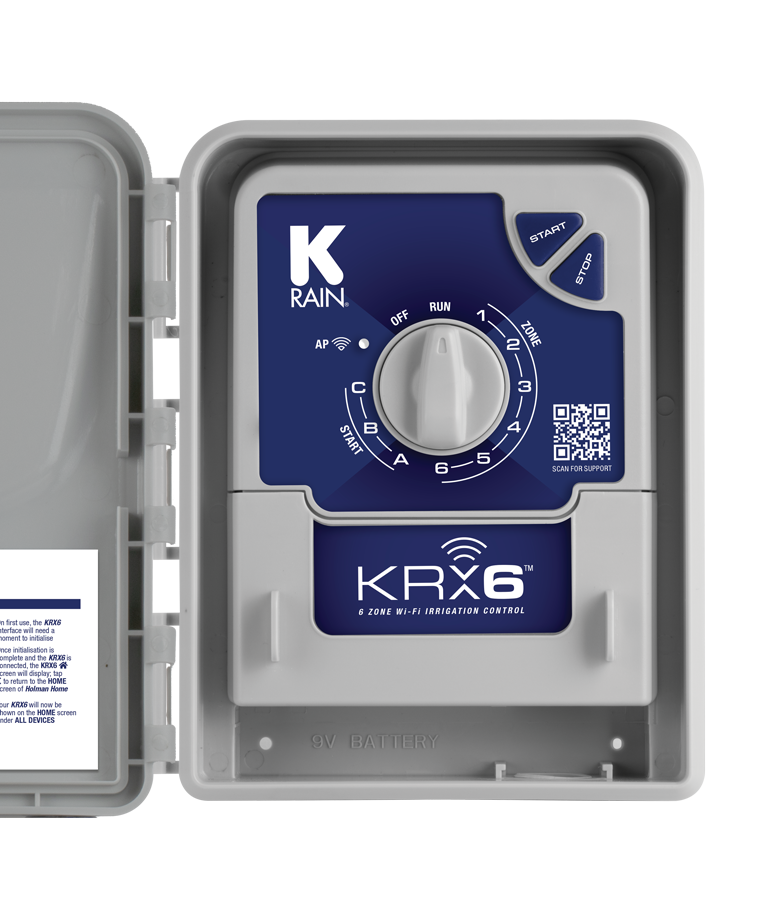

KRX6 Indoor Wi-Fi Irrigation Controller

6 Zones

K-Rain’s answer to smart commercial irrigation control, the KRX6 Wi-Fi Irrigation Controller is compatible with existing systems. Allowing remote control of up to 6 zones from anywhere with internet coverage. The KRX6 covers a wide range of applications from residential and commercial turf, to light agriculture and professional nurseries. Featuring misting scheduling power with the inclusion of seconds and delays in programming.

  • Wi-Fi control with Holman Home via iOS or Android
  • 6 zones can be added to the 3 start times
  • 7 day scheduling options; odd and even days intervals
  • Max 15 day watering delay
  • Zone and multi-zone manual control
  • For indoor use only
  • 3 year warranty
  • Requires 2.4gHz Wi-Fi Network


Zone: 6 Zone
SKUKRX6 Category Tag
Additional information
Weight1.000 kg
Dimensions5.7 × 24 × 18.6 cm


Electrical Specifications

  • External Transformer
  • This unit can run off a 50Hz external transformer with an output of 24VAC 50Hz

Electrical Outputs

  • Maximum of 1 AMP
  • To the Solenoid Valves: 24 VAC 50/60 Hz 0.5 Amps maximum
  • To the Master Valve/Pump Start: 24 VAC 0.25 Amps maximum

Overload Protection

  • Standard 20mm 1 AMP fuse

Power Failure

  • 9 Volt alkaline battery maintains the clock up to one year


View Manual

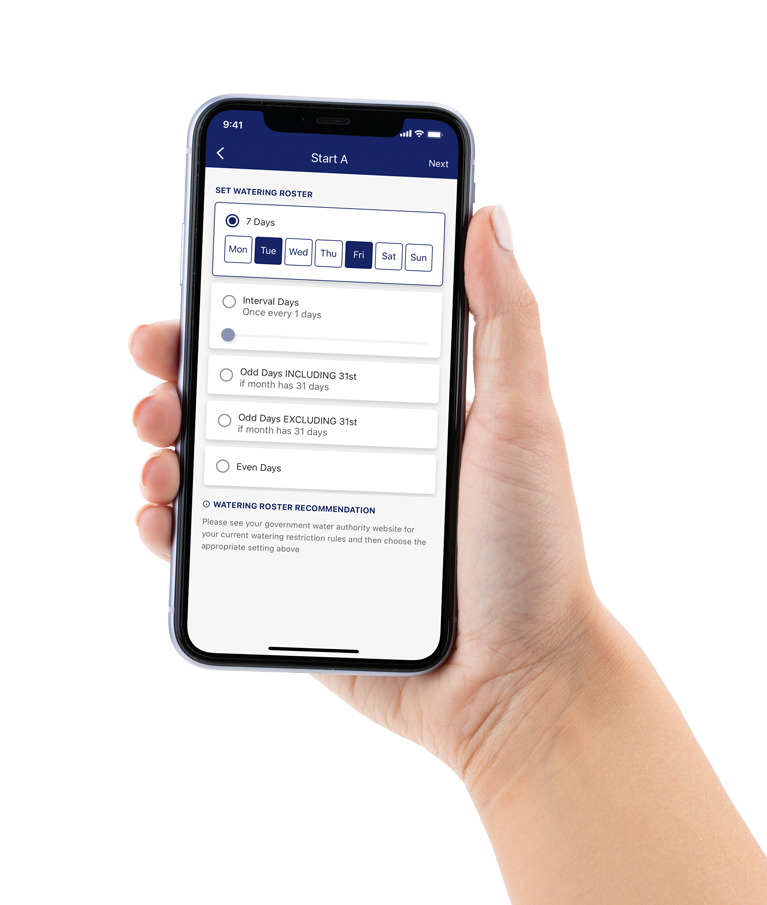

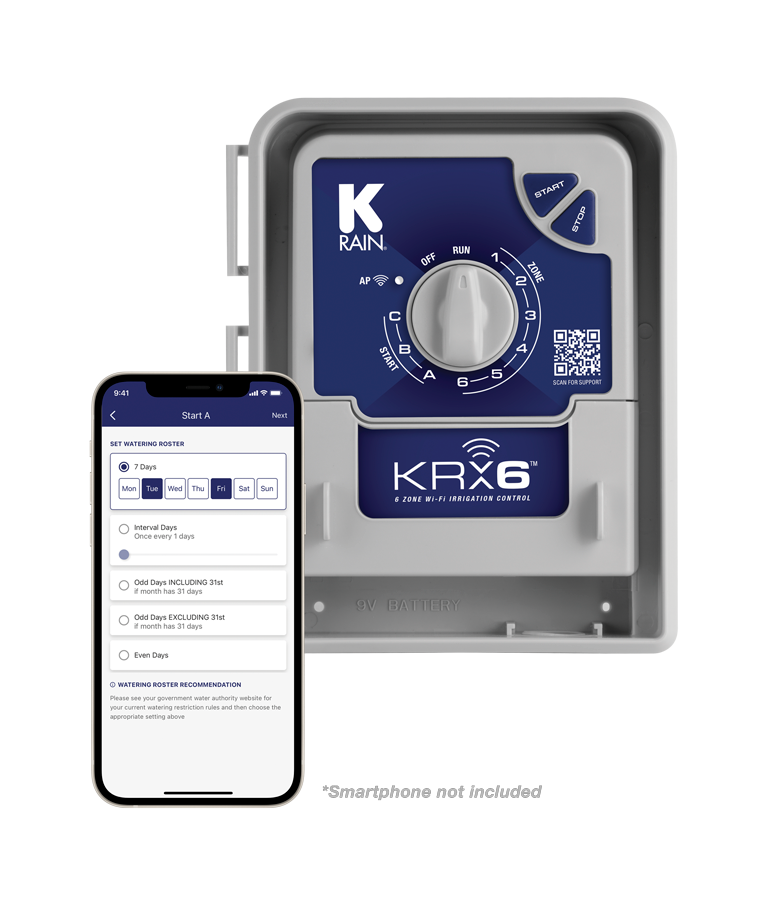

  • For use with smartphone or tablet running iOS or Android
  • Control with Holman Home, available on the App Store and Google Play
  • Connect via Wi-Fi through your home 2.4GHz network
  • Control up to 6 watering zones
  • Schedule up to 3 different start times, to then allocate to any zone
  • Program in seconds and apply delays for misting, greenhouses and propagation
  • Comply to water restrictions with individual day selection, even/odd/odd-31 and 1-15 day interval watering
  • Manual and automatic functions
  • Apply watering delay option manually or program with automations for up to 15 days
  • Program to meet water restrictions *

* Programming abilities are subject to your local water authority — be sure to consult them for current watering restrictions.

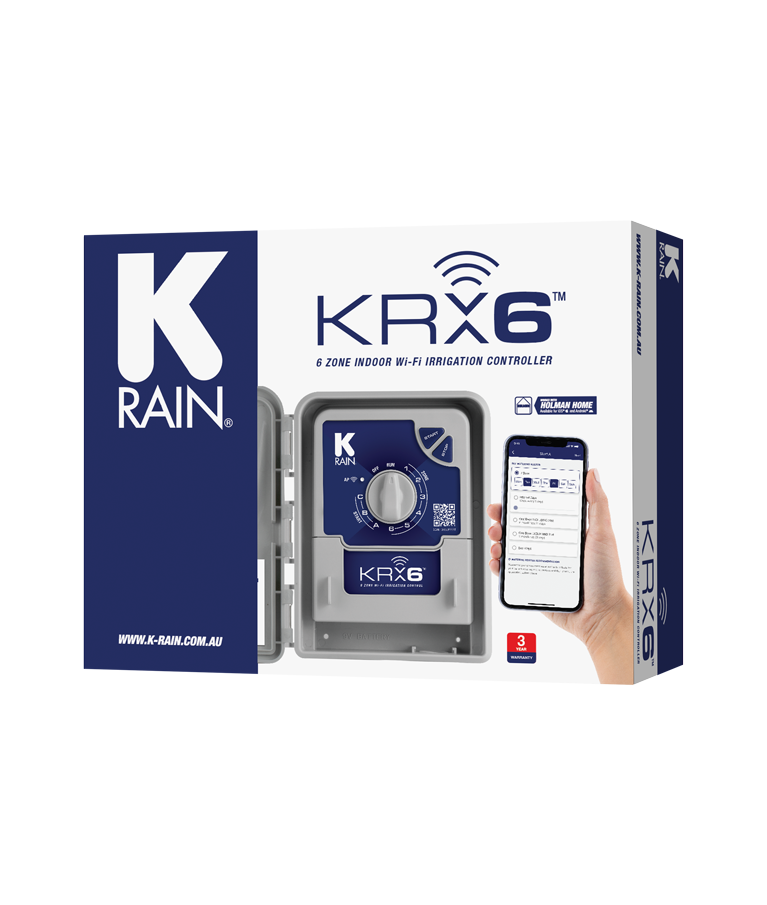

KRX6 wifi 6 zone irrigation controller packaging
