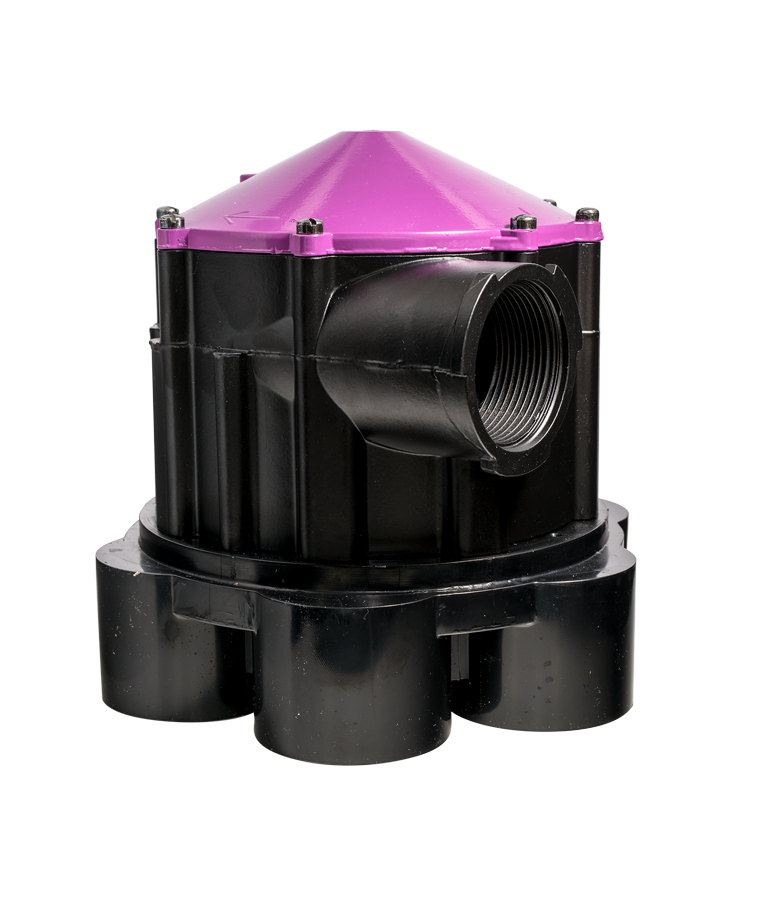

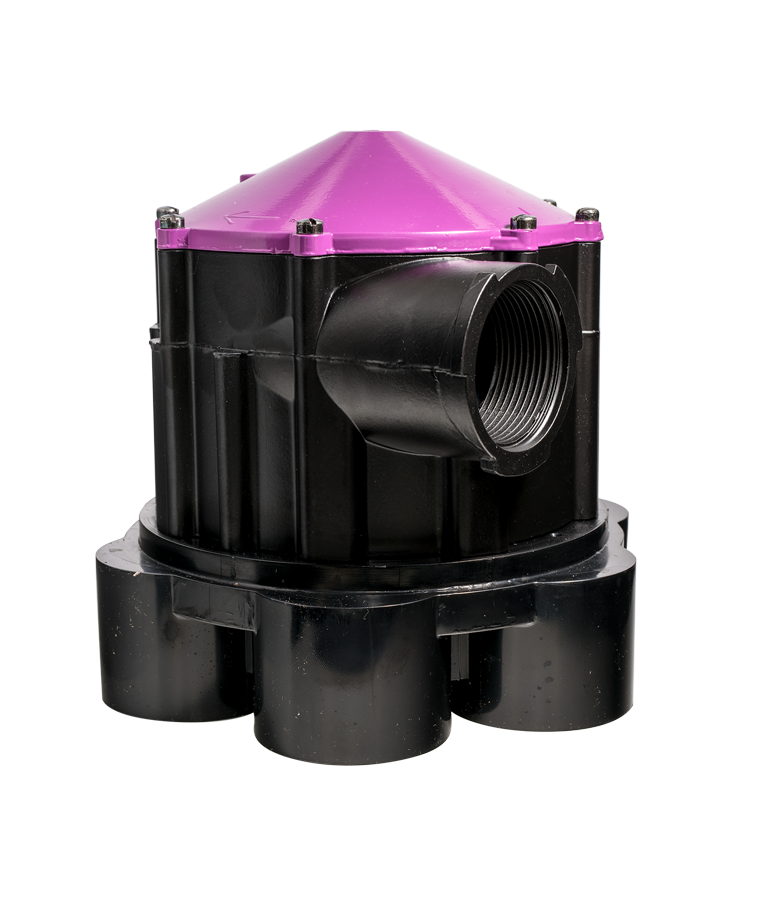

6000 Series 40mm Indexing Valve 6 Zone / 6 Outlet (RCW)

The 6000 line of indexing valves offers exceptional reliability and durability even under the dirtiest water conditions.  With a metal die-cast body, the 6000 valves are capable of high-pressure applications and are recommended to be used on pump fed systems or high-flow city water systems. The 6000 is also ideal for onsite wastewater and effluent water applications. With only one moving part (the stem and disc assembly), the valve is easily serviced and maintained.

  • Metal Die-Cast Body – Durable, long-lasting and capable of high-pressure applications.
  • Simplicity of Design – Valves are easily maintained and serviced for long product life.
  • Operates at minimum 57 LPM at Pressures of 175–1000kPa – Ideal for pump-fed systems or high-flow city water systems.
  • Built-in Atmospheric Vacuum Breaker – Releases any vacuum created between the pump and the valve on shut down.
  • 6 Outlets for Reclaimed Water use

Close
SPECIFICATIONS

SPECIFICATIONS

MaterialABS Polymer Construction
Outlets6
Cammed6 Zone
UseReclaimed Water
Flow Rate57 – 570 L/pm
Pressure175 – 1000 kPa
Inlet40mm BSP (1 1/2″)
Outlet40mm (1 1/2″)
Close
GUIDES
Close
Reviews

Description

With a metal die-cast body, the 6000 valves are capable of high-pressure applications and are recommended to be used on pump fed systems or high-flow city water systems. The 6000 is also ideal for onsite wastewater and effluent water applications.

Product Details

  • Inlet: 40mm BSP (1 1/2″)
  • Outlet: 40mm (1 1/2″)
  • Pressure Rating: 25 – 75 PSI (175 – 1000 kPa)
  • Flow Range: 57 – 570 L/pm
